YLT-650 Truck tire changer machine

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1, mobile low-voltage control handle for operation.

2, operating voltage 24V, safe and stable.

3. Universal assembly arm with swinging assembly disc and swinging assembly hook.

4, suitable for 14 "26" all rim sizes

5. The lifting arm and fixture are hydraulically driven

6, Italian pump optional

7. optional accessories

Alu alloy rims protection rings

Alu alloy rims protection set

Tubeless roller

Technical Specification

Rim Diameter 14''-26''
Max Wheel Weight 500kg
Max Wheel Width 780mm
Max Wheel Dia 1600mm
Hydraulic pump motor 1.5kw 380v – 3ph (220v, Optional)
Gearbox motor 2.2kw 380v – 3ph (220v, Optional)
Bead breaker force 2500kg
Max. Torque 6457N.M
Operation control voltage 24v
Machine weight 517kg
Overall dimensions approx 2500*2000mm
Power 220/400V  50/60HZ  1P/3P Optional
Packaging 2030*1580*1000mm
Gross Weight 633kg


Truck Tire Changer Machine – the latest innovation in the world of tire changing technology. This machine is designed to drastically revolutionize the tire changing process for large commercial and heavy-duty vehicles, by providing a safe and effortless way to change truck tires.

The machine is easy to operate, allowing your team to be trained quickly and effectively. It is also easy to maintain and effortlessly replaces worn-out parts, making it a long-lasting investment for your business.

In conclusion, the Truck Tire Changer Machine is a game-changing tool in the tire changing industry. It is designed to optimize the safety, efficiency, and profitability of your heavy-duty tire changing operation and streamline your business processes. If you are looking to enhance your tire changing services, this machine is a must-have. Invest today and be confident of a reliable, safe, and efficient service.

Detailed Drawing

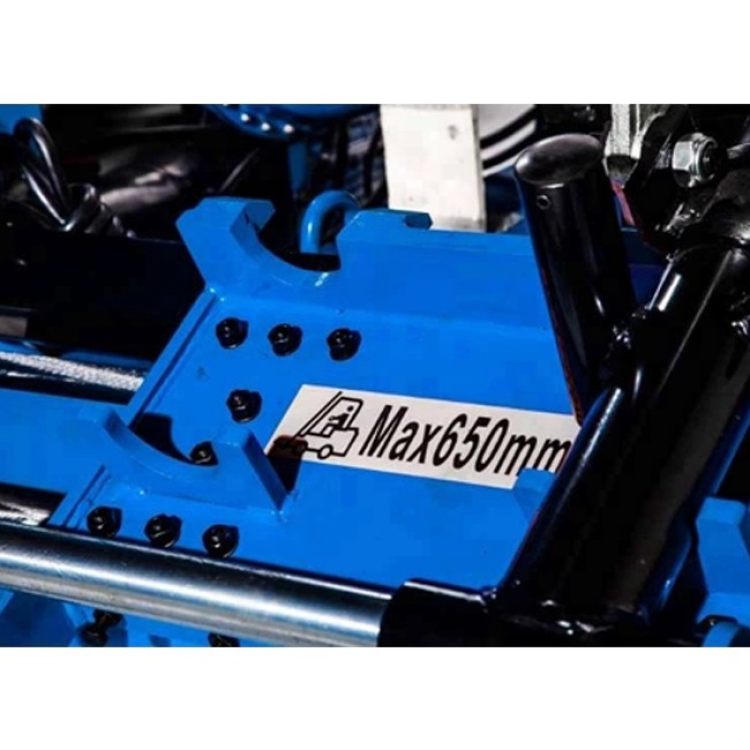

tire changers truck (8)

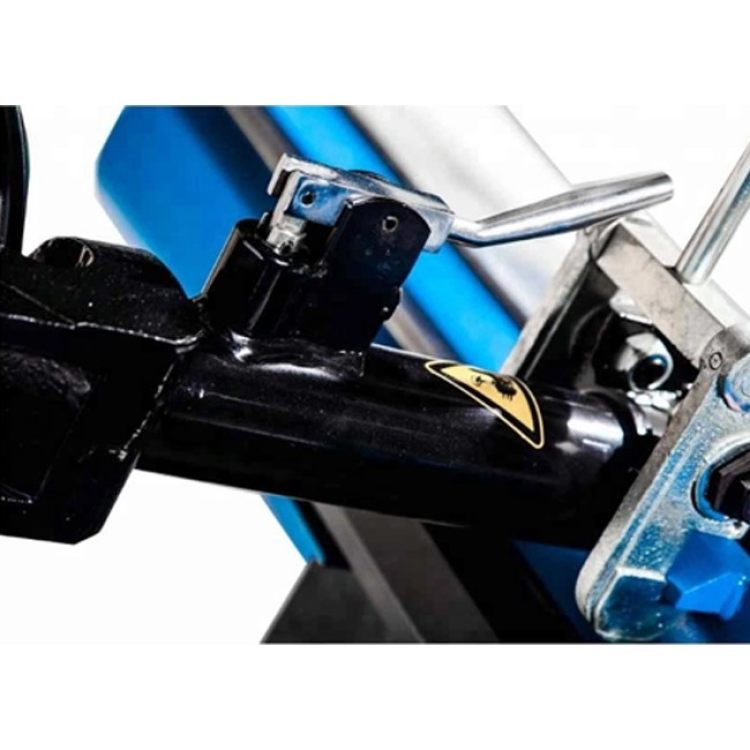

tire changers truck (9)
