YCLT-860-320 tire changer machine

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color) Manual Lock Release 2 Post Car Lift

Send email to us

Product Detail

Product Tags

Characteristics

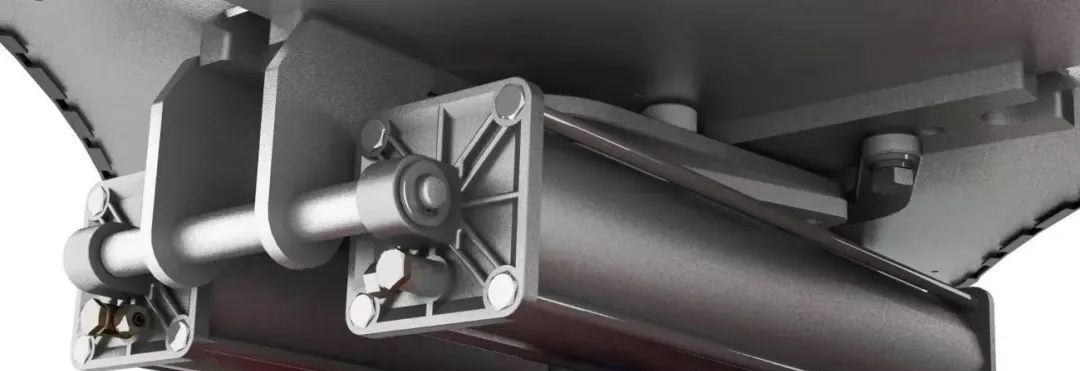

1, The standard with the inner diameter Φ80mm cylinder, compared with other products cylinder clamp wheel strength can be increased (50KG or more). In the process of removing and assembling the tire, avoid the wheel hub damage caused by the slippage of the claw.

2, The standard plate gasket not only plays the purpose of safe protection of the operator but also avoids the surface wear of the plate to reduce the service life.

3, The new aluminum foot chassis design not only takes into account the stability of air tightness, but also improves the strength of the foot, which is ergonomic design.

4, The use of aluminum cylinder diameter 200 large cylinder, improve the strength of the shovel tire to avoid cylinder rust and increase the service life

5, Enhanced square shaft, lengthened hexagonal set greatly increase the strength of the machine.

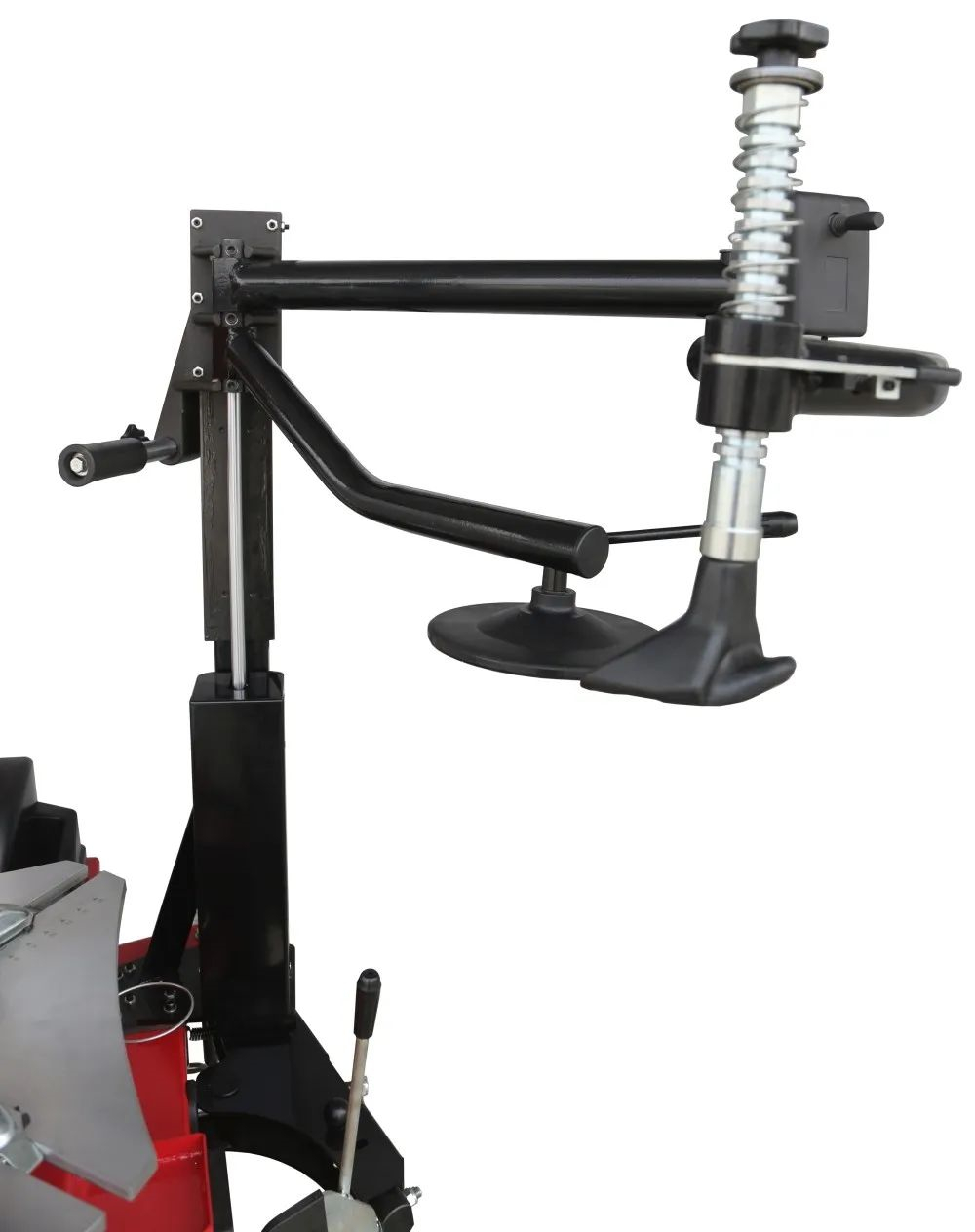

6, The standard 320 assistant, easy to operate, improve the overall efficiency of tire removal.

Technical Specification

Rim clamping range (External)	11''-24''
Rim clamping range (Internal)	13''-26''
Operate Press	8-10bar
Max Wheel Dia	1100mm
Max Wheel Width	3''-14''
Power supply / Motor power	220v / 380v. 0.75kw / 1.1kw
Noise	＜70db
Weight	383kg / 400kg

Advantages

One of the key features of our tire changer machine is the ease of use it provides. The intuitive interface, user-friendly controls, and simple set-up make it easy for even novice technicians to operate. Furthermore, its compact size allows it to fit seamlessly into your workflow, taking up minimal space and requiring very little maintenance.

Our tire changer machine is also built to last. Made from high-quality materials, it is designed to withstand the toughest conditions in any type of garage or workshop. This guarantees that your investment will last for years to come, providing you with an invaluable tool for your business.

The machine is equipped with a motorized turntable that provides the optimal torque for removing and installing tires. It is also equipped with a bead breaker and demount head that are capable of handling even the toughest tires. The clamping system is designed to securely hold the tire in place, ensuring that it remains stable throughout the process.

The tire changer machine is ideal for those who demand both quality and value in their tire-changing equipment. It is effective, efficient, and a reliable tool that helps you get the job done quickly and easily. Whether you are an independent mechanic or run a large garage, our tire changer is an investment worth making.
