YLT-690 Truck tire changer machine

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1, suitable for trucks, buses, tractors, engineering vehicles and other tires.

2, rim diameter 14 "-56".

3. Two speeds.

4, Italian pump (optional)

5. Optional Accessories: Universal self-centring chuck operate size from 14''-42''

Alu alloy rims protection set

Tubeless Roller

Alu alloy rims protection rings

Wireless Remote Control Unit

Technical Specification

Rim Diameter 14''-42''
Max Wheel Weight 1600kg
Max Wheel Width 1050mm
Max Wheel Dia 2300mm
Hydraulic pump motor 2.2kw 380v – 3ph-50hz (220v, Optional)
Gearbox motor 2.2kw 380v – 3ph-50hz (220v, Optional)
Bead breaker force 3300kg
Max. Torque 5265N.M
Operation control voltage 24v
Machine weight 758kg
Overall dimensions approx 2500*2000mm
Power 220/400V  50/60HZ  1P/3P Optional
Noise Level ≤70db
Temperature 0℃-40℃
Packaging 2130*1850*1050mm
Gross Weight 850kg



The Truck Tire Changer Machine is a modern piece of equipment that is manufactured using high-quality materials to ensure durability, longevity, and stability. It is an ideal tool for any garage, mechanic shop, or vehicle maintenance center that handles a large number of commercial or heavy-duty trucks.

One of the outstanding features of this machine is its ability to easily handle tires up to 49 inches in diameter and 90 inches in width, making it a versatile and reliable tool for any heavy-duty tire changing operation. Additionally, this machine is designed with an adjustable bead breaker and bead press arm and can be used to remove and install truck tires of various types, including tubeless, single, or double tires.

The Truck Tire Changer Machine is also equipped with an automatic wheel balancing system to ensure precision balancing, which is essential for the safety and performance of the truck. The unique features of this machine eliminate the need for multiple employees to manually change tires, thereby reducing labor costs, as well as minimizing the risk of any employee injuries.

Detailed Drawing

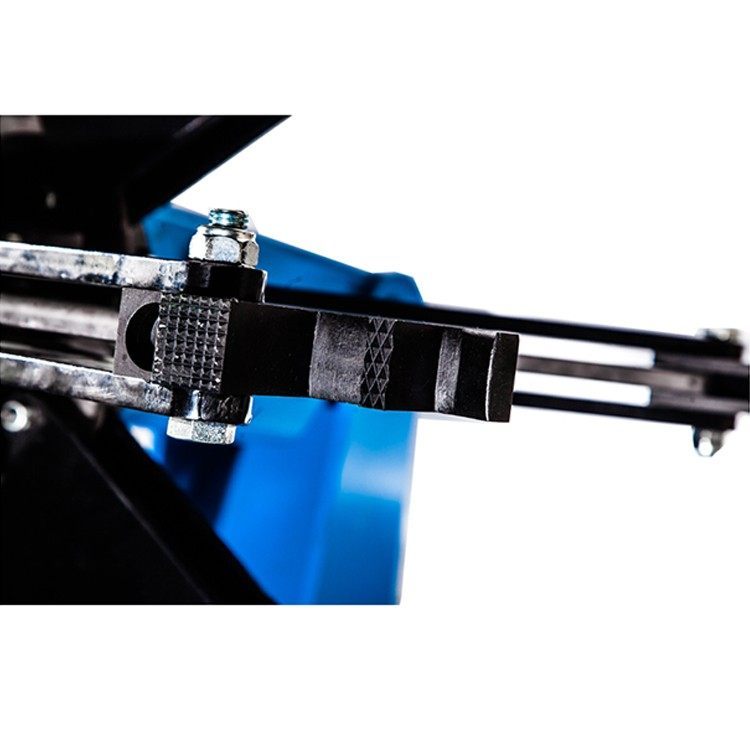

truck tire changer (3)
truck tire changer (4)

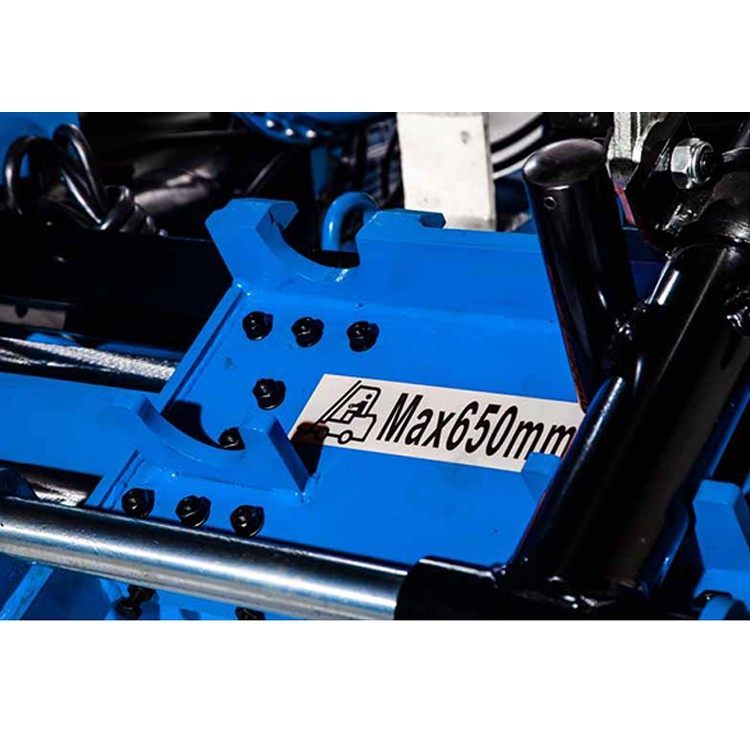

truck tire changer (5)

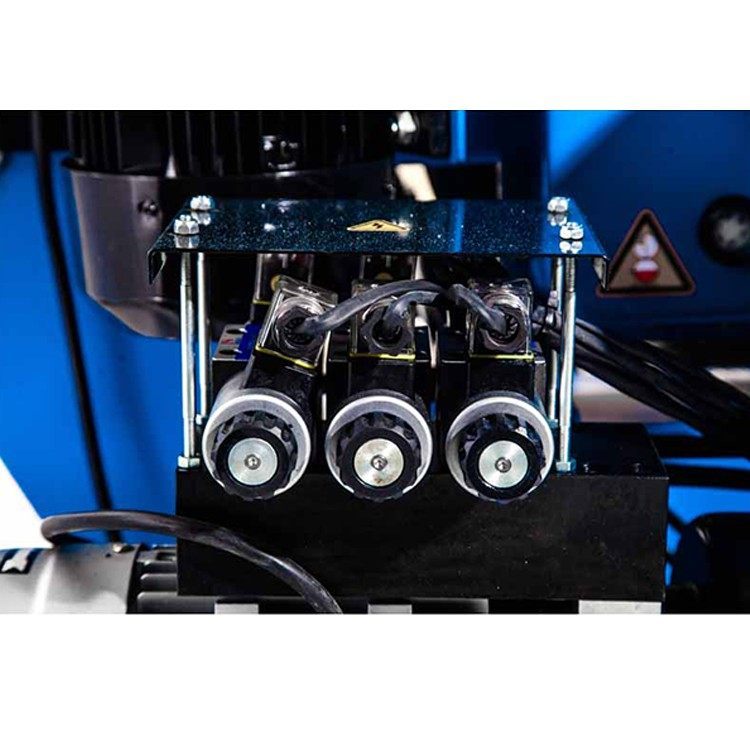

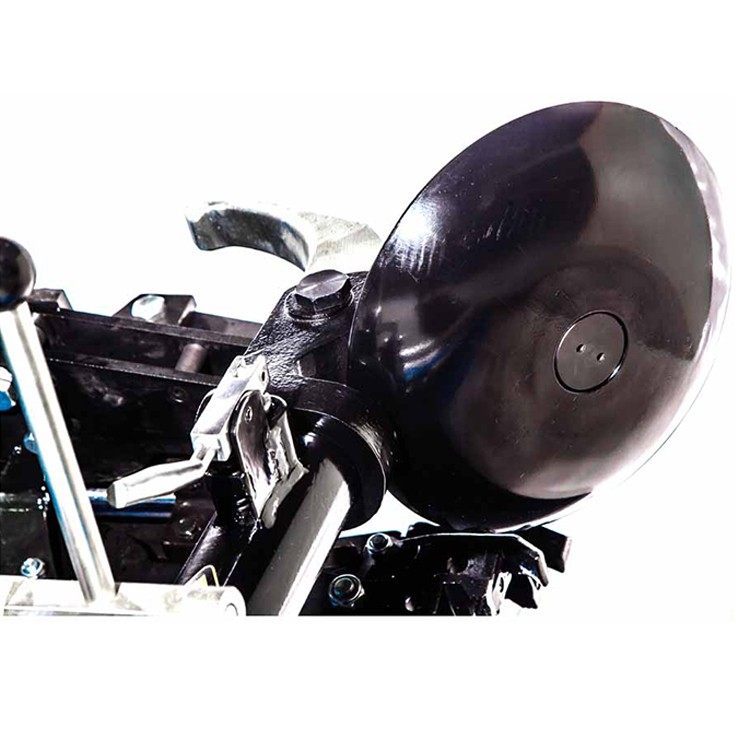

truck tire changer (6)

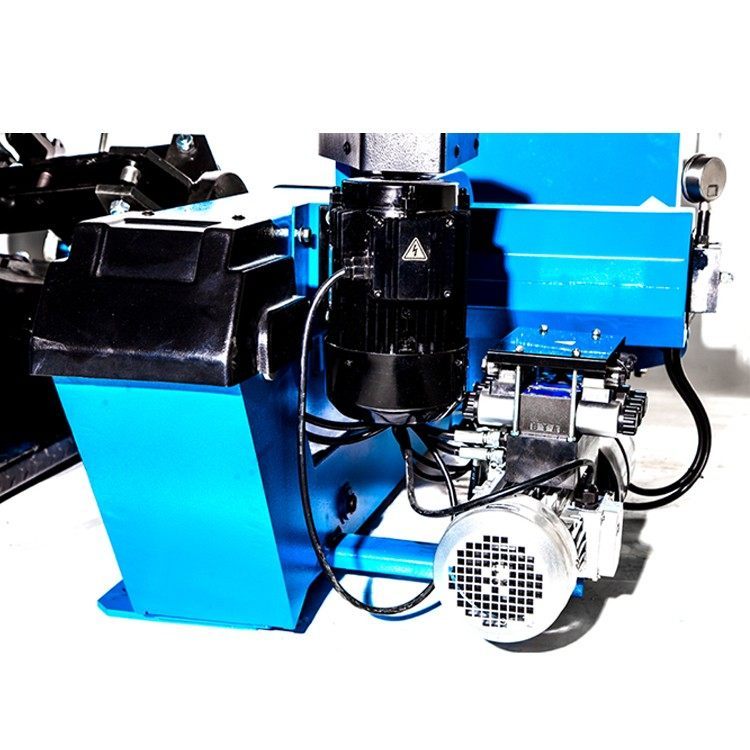

truck tire changer (7)
