YQJY5/8/10/12/15-4B large vehicle 4 post hydraulic car lift

Short Description:


Product Detail

Product Tags

Overview

Electrohydraulic drive;

Safety lock device, the use of safer, more reliable;

Independent hydraulic power unit, without any daily maintenance, easy to disassemble, simple to use;

Column molding, high strength, durable longer;

Unique chain transmission mode, lifting chain tensile strength, to ensure the safety of personal equipment;

The ultra-long chassis is available for more models;

Electric hydraulic drive, more unique, large tonnage, the first domestic;

Widely used in: 4S shop, car repair shop, service station, bus company, etc.

Safety Aspects

a Kang Yu design, double chain lifting, to ensure safety;

b with upper and lower limit switch, reach the limit position, automatically stop;

c Product quality problems shall be borne by PICC property Insurance.



Product Advantages

Has obtained the national A-level special equipment manufacturing qualification, 9001 quality system certification, EU CE certification;

Independent research and development, with a number of national patents;

More than 30 years of manufacturing experience, focusing on truck elevator, lifting platform series products;

The products sold all over the country, all provinces are used by customers, widely praised

Product parameters

Product name 4 POST large vehicle car lift
Model YQJY5-4B YQJY8-4B YQJY10-4B YQJY12-4B YQJY15-4B
Lift capacity (kg) 5000 8000 10000 12000 15000
Max Lifting Height (mm) 1700 1700 1700 1700 1700
Min Height (mm) 184
Effective span (mm) 2620 3230 3230 3230 3230
Overall dimensions (mm) 4970*3160*2388 6860*3810*2410 7300*3260*2450
Motor power (kw) 2.2 3 3 3 4
Supply voltage 220/380 220/380 220/380 220/380 220/380
Lifting time (s) About 60 About 120 About 120 About 120 About 120
Down time  (s) About 60 About 100 About 100 About 100 About 100
Driving mode Electro-hydraulic type
Select accessories Second lift / Wheel Alignment

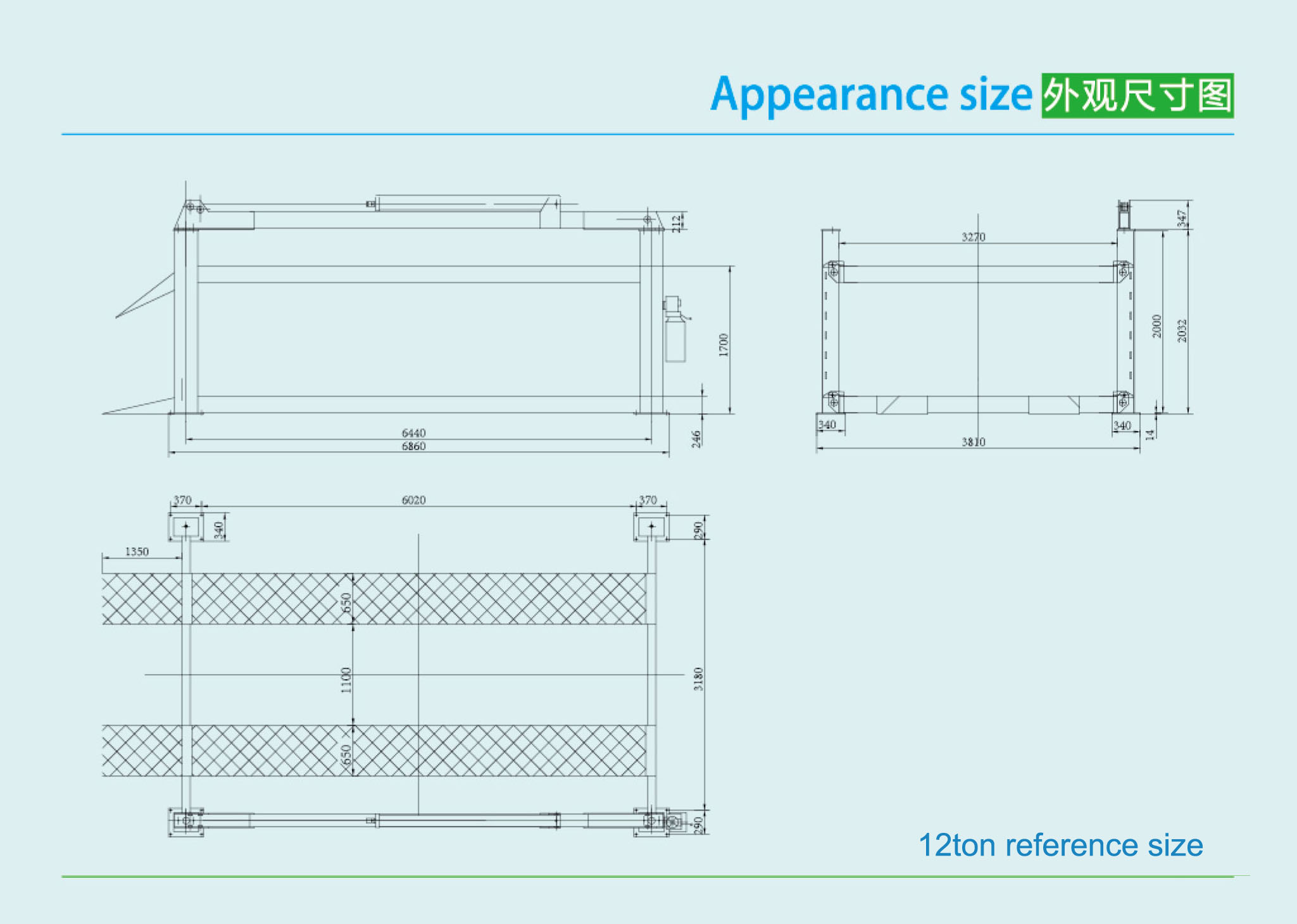

Detailed Drawing

Customers recommend 4 post lift hydraulic car lift (2)
