YC-LZW-C-2140 Manual Lock Release 2 Post Car Lift

Short Description:

Model: YC-LZW-C-2140

Original : China



Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)
(Optional color)Manual Lock Release 2 Post Car Lift


Product Detail

Product Tags

description

* Automobile lift refers to the automobile maintenance equipment used for automobile lifting in automobile maintenance industry. Lifting machine plays a vital role in automobile maintenance, whether the vehicle overhaul, or minor repair and maintenance, can not be separated from it, its product nature, quality directly affect the personal safety of maintenance personnel. In the repair and maintenance enterprises of different sizes, whether it is the comprehensive repair shop of a variety of models, or the street shop of a single business scope (such as tire shop), almost all are equipped with a lift.

* Ground lift without grooving, suitable for any repair shop, there are some floors are not suitable for the installation of two column lift and ordinary four column lift, and the machine and floor contact surface, so that can be installed in any can drive the floor above, to solve the problem of customer site. The biggest advantage of shear lifting machine is that it does not occupy space and is convenient to use. The disadvantage is that the oil balance requirement is very strict, and it needs to be equipped with control box, and the cost is more expensive.

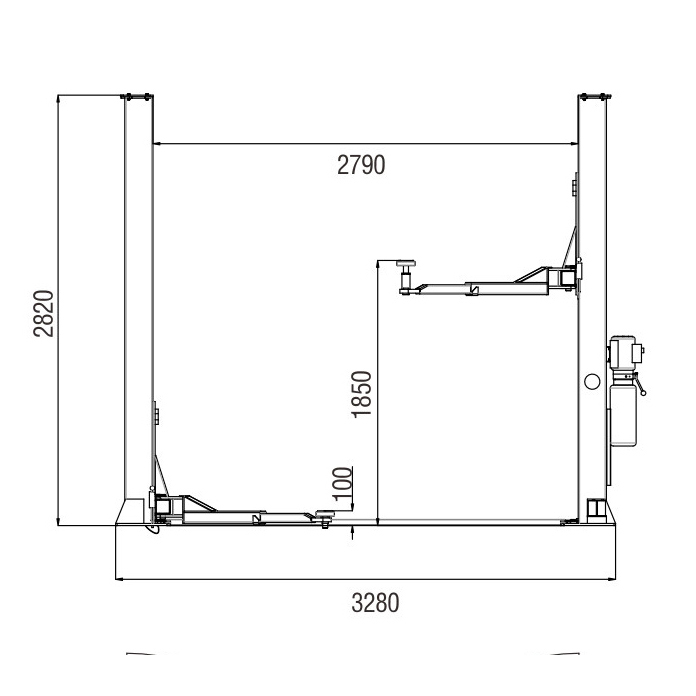

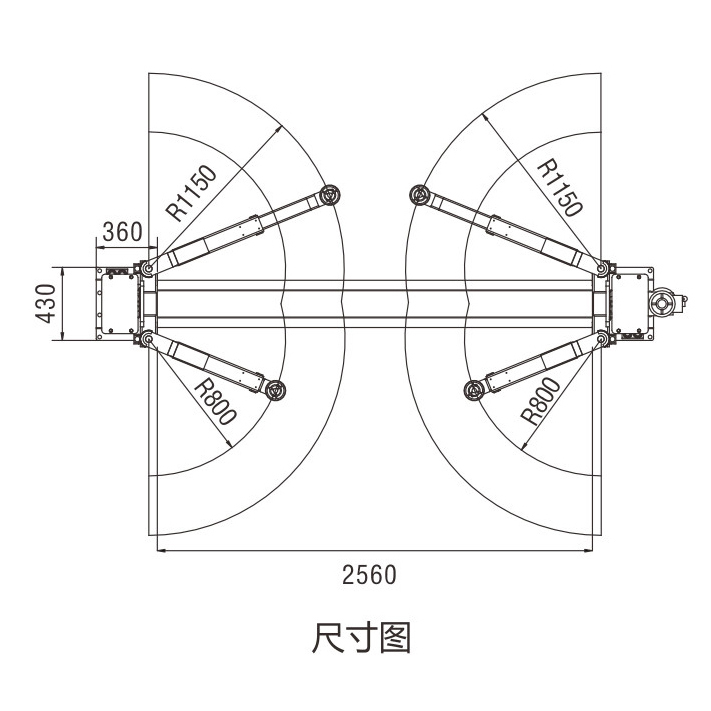

Technical Specification

Lifting Capacity 3500kg
Lifting Height 1850mm
Min. Height 100mm
Pass Width 2560mm
Column Width 2790mm
Total Width 3280mm
Lifting Time 50s-60s
Motor Power 2.2kw-380v or 2.2kw-220v
Oil Pressure Rating 24MPa
Weight 565kg

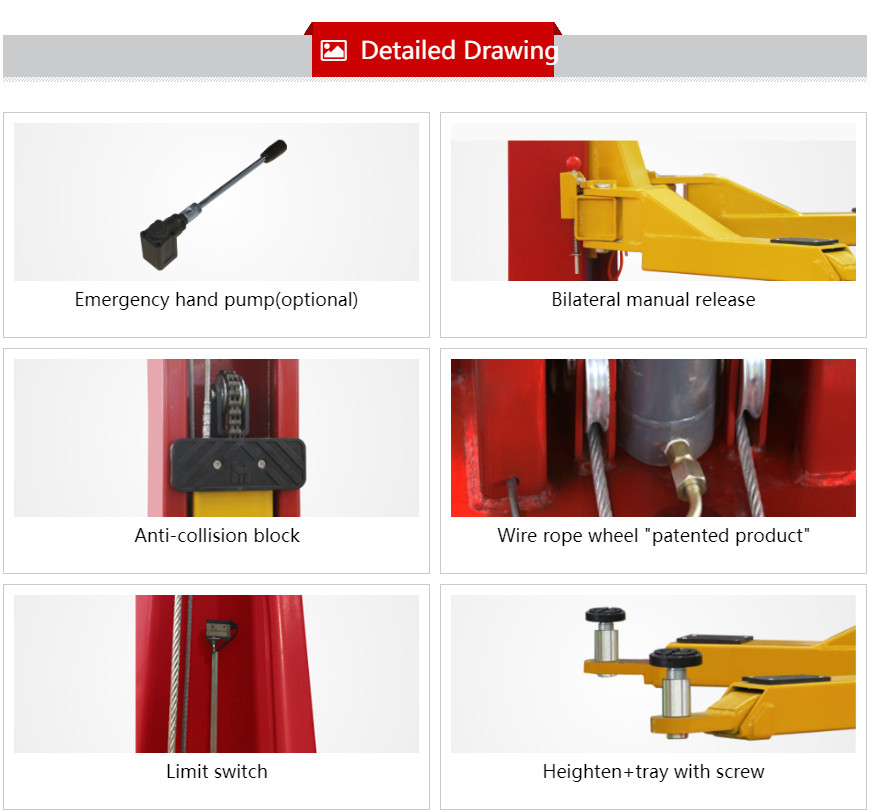

Characteristics

1.Floor design , suitable for the bottom not high in the auto repair.
2.Adopt double cylinder, 4x3 higher and stronger chain, the wire rope balance system.
3.Bilateral manual release.
4.Rubber pad door-opening protection.
5.Rubber support pad adopts double helix adjustment height and height increase joint.
6.Limit switch.
7.The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.

details (2)
details-2
details-4
details-3
