YC-LZW-B-2140 Electric release car lift 2 post

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1.Floor design, suitable for the bottom not high in the auto repair.
2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.Electric release.
4.Rubber pad door-opening protection.
5.Secure fence protect the toes.
6.Rubber support pad adopts double helix adjustment height and height increase joint.
7.Limit switch.
8.The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
9.It has adopted 115% dynamic load capacity and 150% static load capacity test
10. CE certificated

Technical Specification

Lifting Capacity 4000kg
Lifting Height 1850mm
Min. Height 120mm
Pass Width 2500mm
Column Width 2790mm
Total Width 3280mm
Lifting Time 50s-60s
Motor Power 2.2kw-380v or 2.2kw-220v
Oil Pressure Rating 24MPa
Weight 590kg

products list

You can buy most items in WIN GLITTER related to garage equipments to save your energy to purchase everywhere.
1)car lifts(mid rise car lift,thin scissor car lift,2 post ,4 post,etc)
2)Tire changer for auto and truck
3)Wheel balancer
4)Wheel alignments
5)Car frame machines
6)Spray booth
7)Car Spray Booth
8)Car Washing Machine
9)Nitrogen Machine
10)Spring Compressor
11)Air Impact Wrench
12)Air Compressor
13)Wheel tools (Transmission Jack, Lift Crane, Tire Bead Seater, Oil Collector Machine, Infrared Heating Lamp, Tire Spreader, Vulcanizing Machine, Tyre Regroover, Jack, Gauge, Pneumatic Engraving Mill, Hydraulic Shop Press)

about us

Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Payment terms:
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

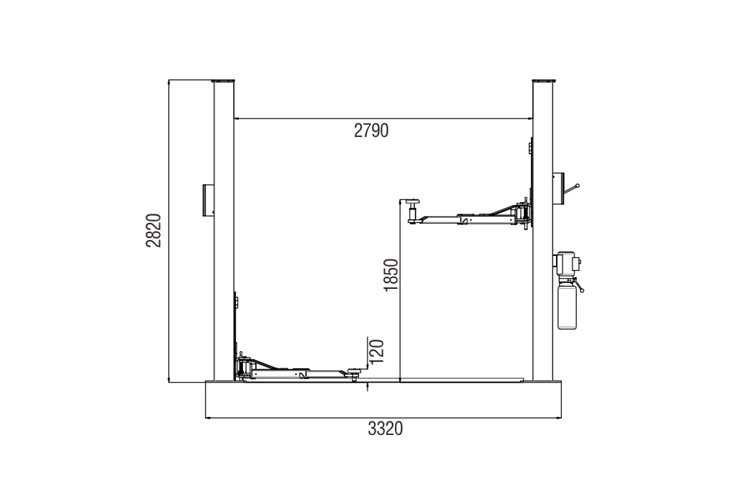

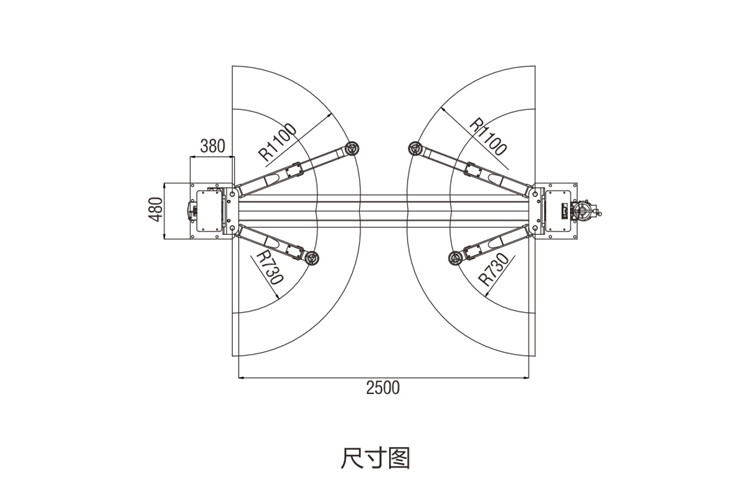

Detailed Drawing

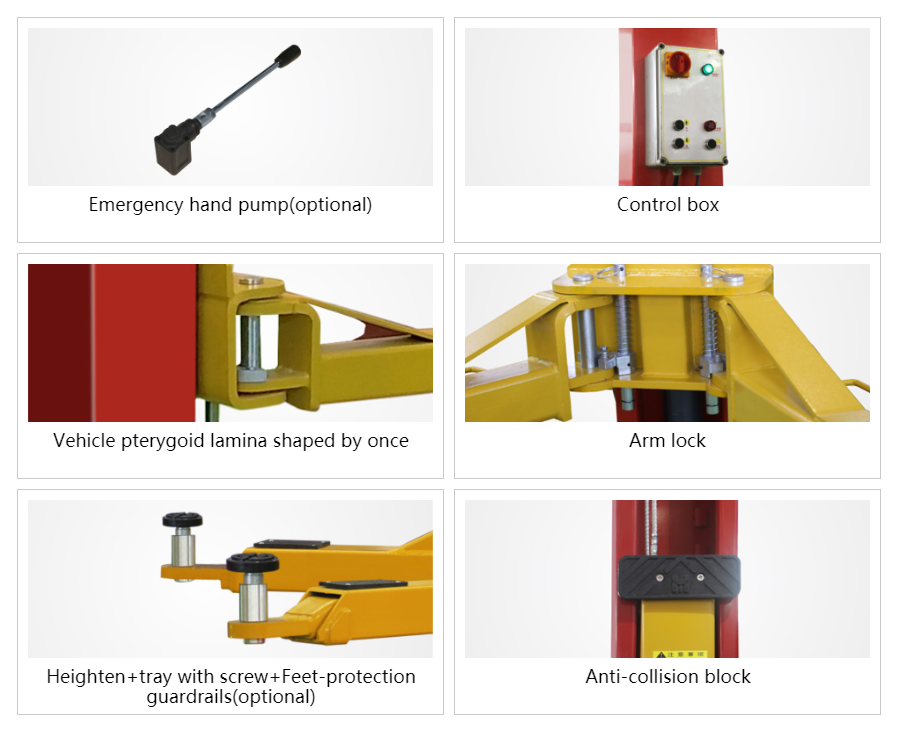

Electric release 2 post car lift  (2)
YC-LZW-A-2140 (1)
YC-LZW-A-2140 (2)
YC-LZW-A-2140 (3)
