YC-JSZM-C-8340 In Ground Scissor Lift 4.2M 4T

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1. In-ground mounted, occupied small space.
2. Electric control pneumatic release, safety and reliable.
3. Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts.
4. Power failure can adopt manually will the car drop out.
5. Oil cylinder with upper return oil, prevent oil cylinder rust.
6. High quality steel ensures the intensity and durable.
7. The surface adopt the static powder coating, good adhesion, high hardness.
8. Double series synchronous balance cylinders ensure the platforms synchronously lifting.
9. The longer and wider platform adopts to various vehicles. Level can be adjusted accurately,suitable for all kinds of high-precision four wheel alignment
10. Pneumatic double teeth automatic locks. Mechanical safety lock engaged automatically, with pneumatic release when lowering. The use of explosion-proof valves ensure the working safe.
11. All pivot joints made with self-lubrication bushing ensure long service life
12. Rollover-prevent function, maximum limit height function, synchronous measuring function and safety voltage control system ensure the working safe.
13. CE Certificated

Technical Specification

Lifting Capacity 3500kg/4000kg
Lifting Height (Main) 1700mm (Jack) 450mm
Min. Height 340mm
Lifting Time 50s-60s
Length Of The Platform 4200mm/4500mm
Platform Width 600mm
Motor Power 3.0kw-380v or 3.0kW-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 1760kg/1900kg
Packaging 4250*663*400mm
Total 4 packaging

Our Products

We also have :
In-Ground Scissor lift 3000kg / 4000kg
Portable Mid rise scissor lift 3500kgs
Portable Scissor Lift 2800KGS
Ultra-thin Scissor Lift

Good quality economic grade 3.5 tons in ground wheel alignment scissor car lift
The large scissor double-layer four-wheel alignment car lift can lift all kinds of cars with a weight of not more than 4000KG, and is suitable for car four-wheel alignment, body maintenance and other maintenance. It is a common equipment for auto repair companies, auto 4S shops and auto repair shops.

Detailed Drawing

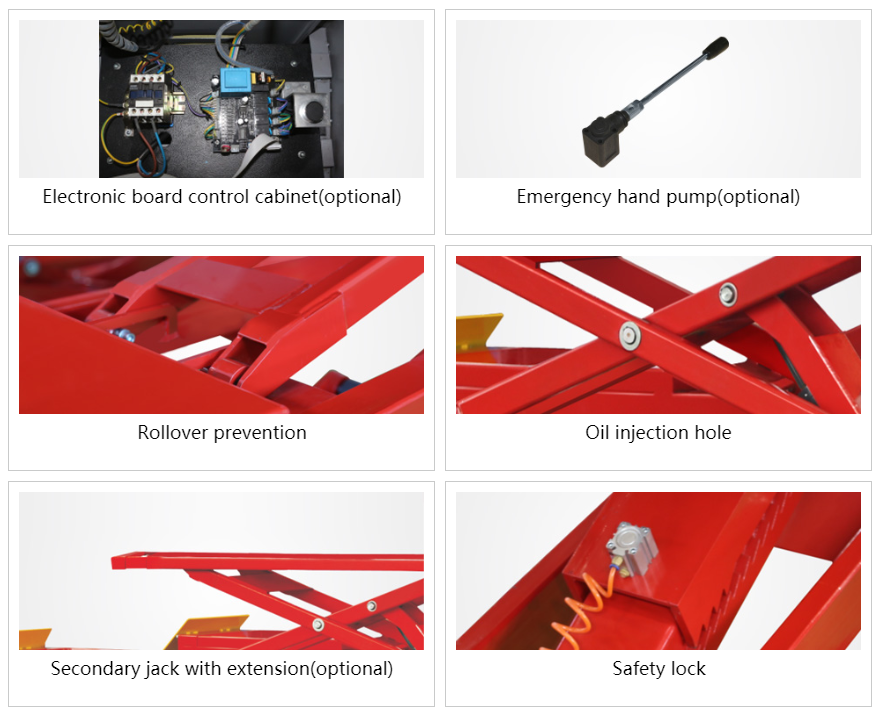

scissor lift  (2)

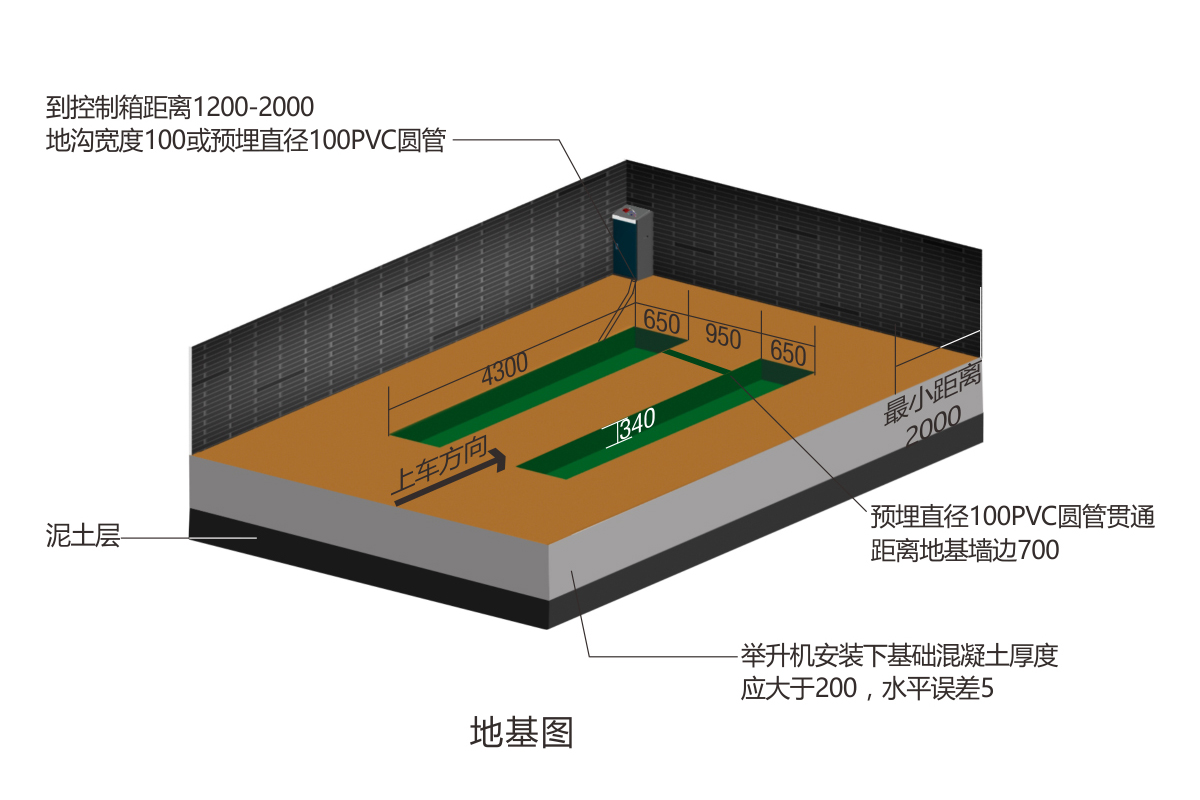

YC-JSZM-C-8340 (1)

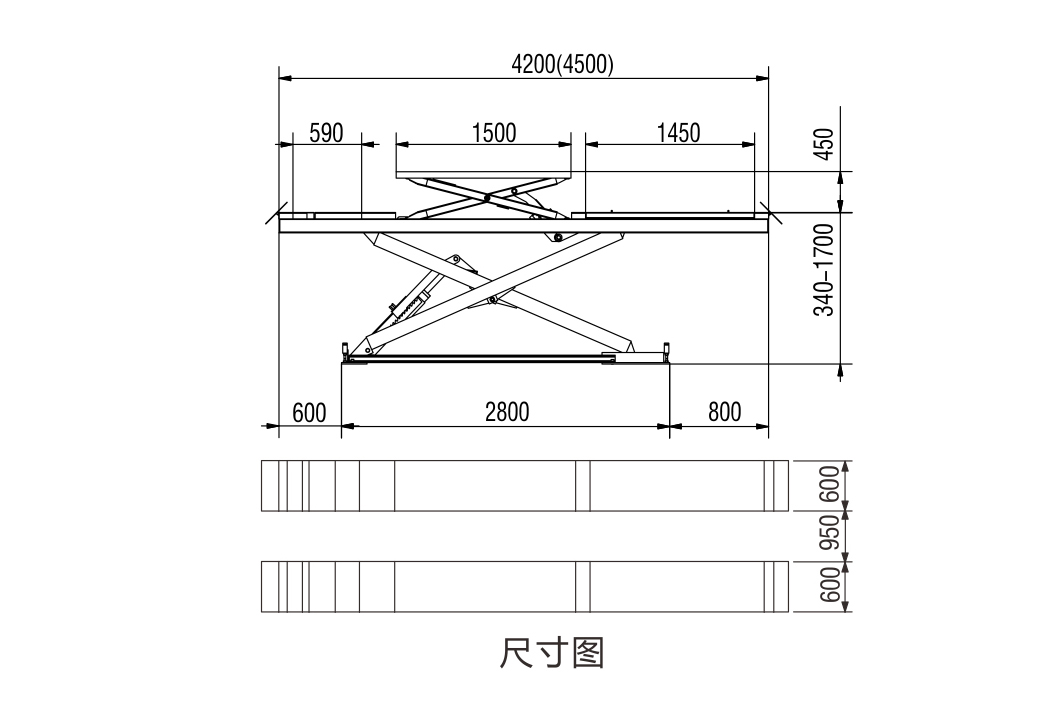

YC-JSZM-C-8340 (2)
