YQJJ20-4A China favorable price electrodynamic inground truck trench lift

Short Description:

1. Electric hydraulic drive, planetary cycloid reducer
2. Novel structure ,move easily ,large lifting capacity,lifting smoothly
3. With self-locking devices, convenient to operate and install
4. Can be customized

Product Detail

Product Tags


Safety Aspects

A.  is provided with a safety nut, when the working nut is damaged, another group plays a protective role;
B.  with upper and lower limit switch, reach the limit position, automatically stop;
C.  Product quality problems shall be borne by PICC property Insurance.

Product Advantages

Has obtained the national A-level special equipment manufacturing qualification, 9001 quality system certification, EU CE certification;
Independent research and development, with a number of national patents;
More than 30 years of manufacturing experience, focusing on truck elevator, lifting platform series products;
The products sold all over the country, all provinces are used by customers, widely praised


Model YQJJ20-4A YQJJ30-4A Notes
Number of columns 2 2 Each equipment
Individual lifting capacityKg 10000 15000 Each one, Total 2 group
Total lifting capacity of equipmentKg 20000 30000 Total
Weight of each deviceKg 1600 1900 Total weight
Maximum lifting heightmm 500 500 Does not include the depth of the trench itself, can be customized according to the actual size
Height of each group of devices 1710 1650
Width of each groupmm 900 900 Only the standard scheme, can be customized according to the actual size
Motor powerKw 2.2 3
Supply voltageV 380V,3hp
Lifting speedmm/s 4.5 4.5
Lifting times About 120 About 96
Down Times About 100 About 96
Driving mode Mechanically driven/pneumatic 2 driving modes
Site requirement Trenches should be dug with a surface of 150mm concrete
Select accessories Configure a bearing support

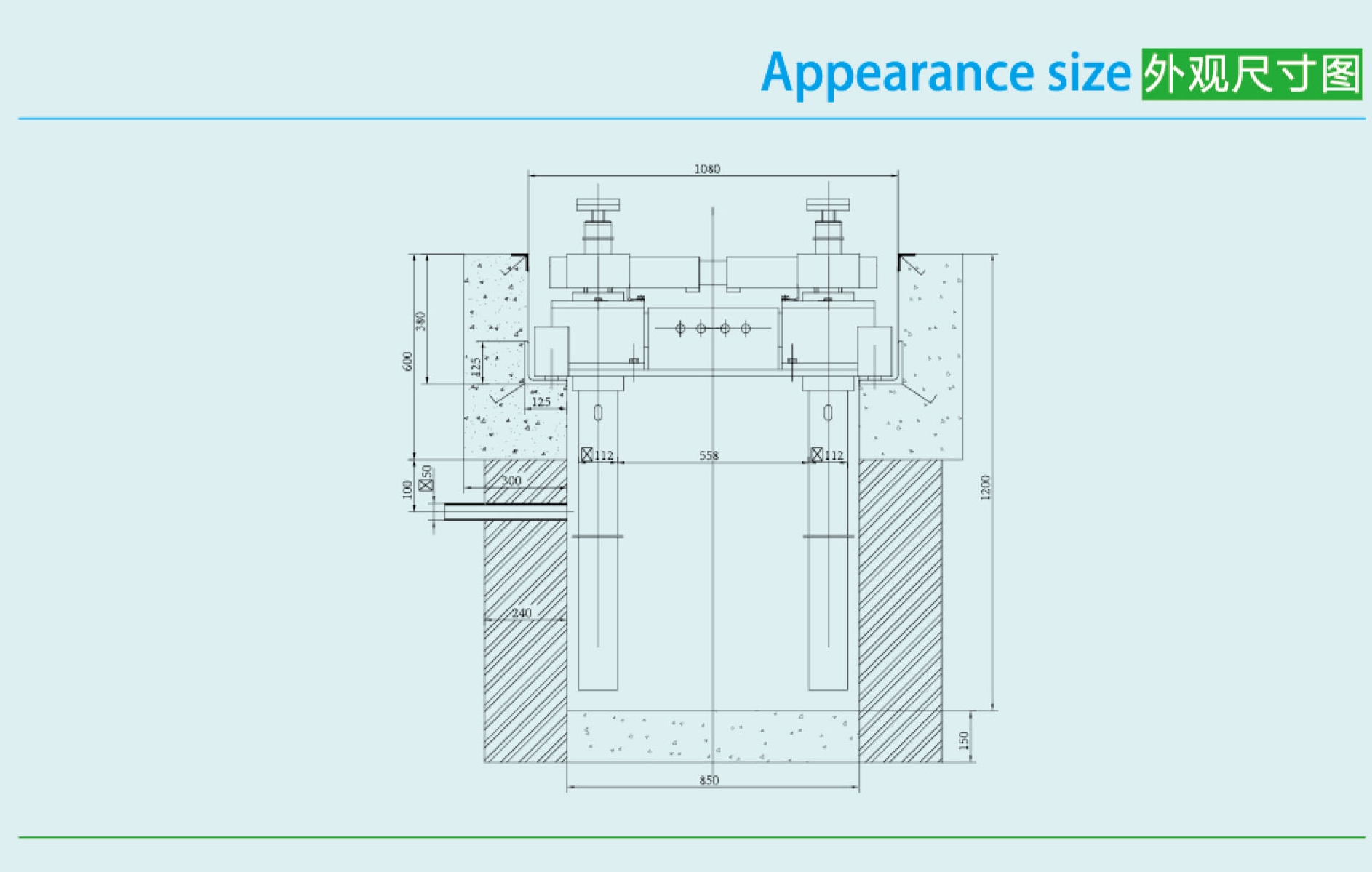

Detailed Drawing
