YCLT-850M-240 Motorcycle tire removal machine

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift


Product Detail

Product Tags

Characteristics

1, the standard with the inner diameter Φ80mm cylinder, compared with other products cylinder clamp wheel strength can be increased (50KG or more). In the process of removing and assembling the tire, avoid the wheel hub damage caused by the slippage of the claw.

2, the standard plate gasket not only plays the purpose of safe protection of the operator but also avoids the surface wear of the plate to reduce the service life.

3, the new aluminum foot chassis design not only takes into account the stability of air tightness, but also improves the strength of the foot, which is ergonomic design.

4, the use of aluminum cylinder diameter 186 large cylinder, improve the strength of the shovel tire to avoid cylinder rust and increase the service life

5, enhanced square shaft, lengthened hexagonal set greatly increase the strength of the machine.

6, standard 241 assistant, easy to operate, improve the overall efficiency of tire removal.

Technical Specification

Rim clamping range (External) 11''-24''
Rim clamping range (Internal) 13''-26''
Operate Press 4-80bar
Max Wheel Dia 1100mm
Max Wheel Width 3''-14''
Number of revolutions of the turntable 6.5rpm
Power supply / Motor power 0.75kw/1.1kw
Bead Breaker force 5500Lb (2500kg)
Noise <70db
Weight 335kg

Advantages

The motorcycle tire removal machine – the perfect tool for any garage, mechanic or motorcycle enthusiast. This ergonomically designed machine is designed to make the job of removing and replacing tires quick and hassle-free.

This tire removal machine is the perfect solution for anyone who spends a lot of time changing motorcycle tires. It’s equipped with advanced features that make the process easy and stress-free. This machine is equipped with a powerful motor that delivers precise and quick performance.

The motorcycle tire removal machine is made from high-quality materials that are designed to last for a long time. The body of the machine is made of sturdy steel, which ensures that it can withstand the rigors of daily use. Furthermore, it’s also designed with shock-absorbing feet that prevent the machine from sliding around during use.

The machine has an adjustable blade that can handle tires of all sizes – from small motorcycles to large cruisers. The blade is made of high-quality steel that ensures that it stays sharp for a long time. Moreover, it is adjustable which makes it easy to use on different models of motorcycle tires.

Detailed Drawing

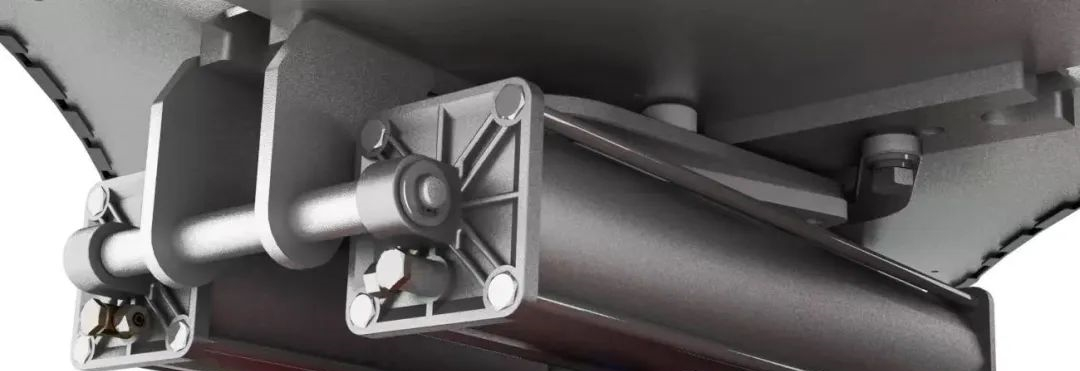

Moto changer (2)

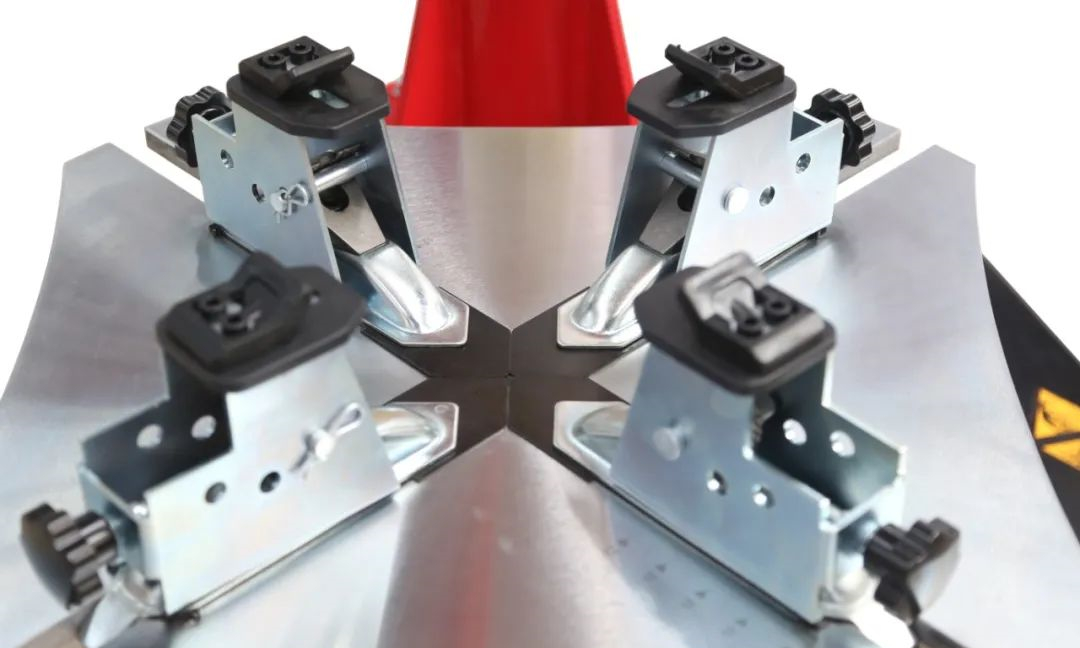

Moto changer (3)

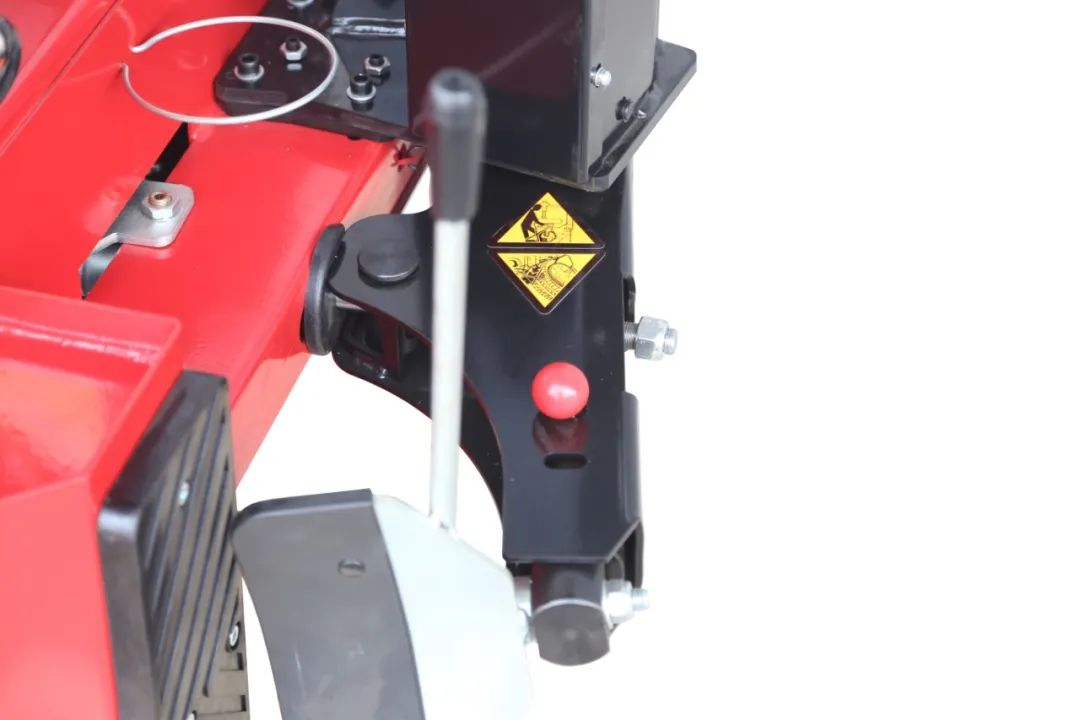

Moto changer (4)

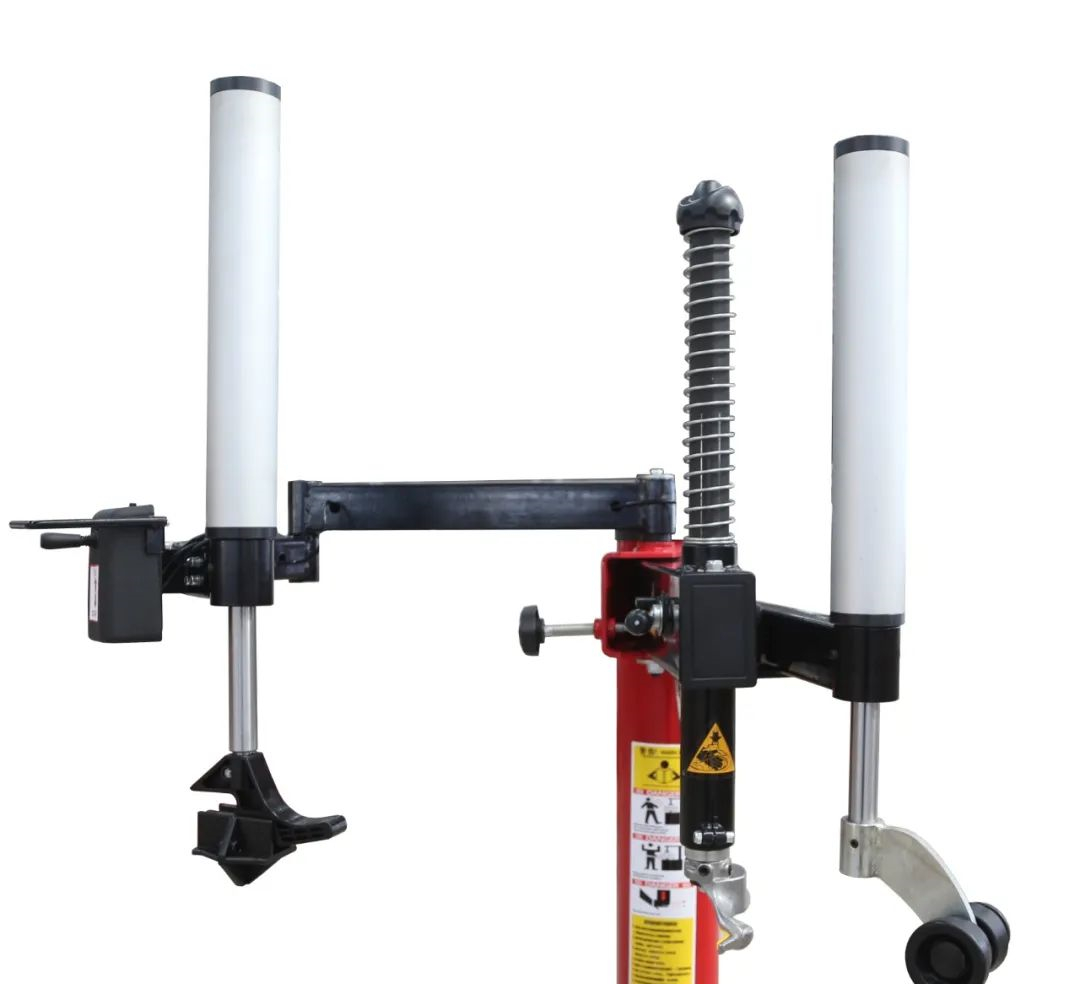

Moto changer (5)
