YC-JSZM-A-8140 Ultra-thin large scissor plate alignment lift 4ton

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1.This kind of scissor lift is hydraulic four wheel positioning, apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection, repair and maintenance.
2.The machine‘s mainly hydraulic components selected Italy, Germany high quality imported parts assembly, adopting dual gear, hydraulic and electrical tripling protection,  safe,  reliable, synchronous stable running.
3.Oil cylinder with upper return oil, prevent oil cylinder rust.
4. CE Certificated

Technical Specification

Lifting Capacity 4000kg
Lifting Height (Main) 1850mm (Jack) 450mm
Min. Height 190mm
Lifting Time 70s-90s
Length Of The Platform 4465mm
Platform Width 680mm
Motor Power 3.0kw-380v or 3.0kW-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 2030kg
Packaging 4420*700*280mm
970*120*320mm (cart)
1100*360*490mm Single cart total 6 packaging Double carts total 7 packaging

Our Products

In-Ground Scissor lift 3000kg / 4000kg
Portable Mid rise scissor lift 3500kgs
Portable Scissor Lift 2800KGS
Ultra-thin Scissor Lift

The In ground big scissor hydraulic car lift can lift all kinds of cars with a weight of not more than 4000kg. It is suitable for four-wheel alignment maintenance, repair, tire disassembly and vehicle maintenance of automobile maintenance companies, especially suitable for basements or floors. No need to construct a pit.

Structural features

-Using a hidden scissor super-book structure, no need to construct a pit, and occupy a small space
-Independent control box, low voltage control, good safety performance
-Hydraulic volume synchronous cylinder, the platform runs synchronously and smoothly
-Double safety device with hydraulic lock and mechanical tooth safety claw, safe and reliable
-With hydraulic failure and overload safety valve protection and anti-pipe explosion device, the machine will not fall quickly when the oil pipe bursts
-Using high-quality hydraulic and electrical components from Italy, Germany, Japan, etc.
-Adjustable position of front wheel corner plate and extended side slide plate to adapt to more models.

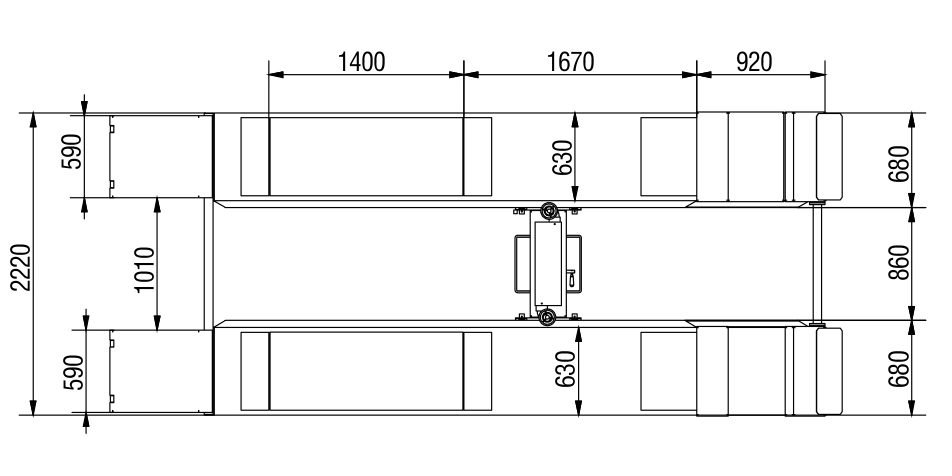

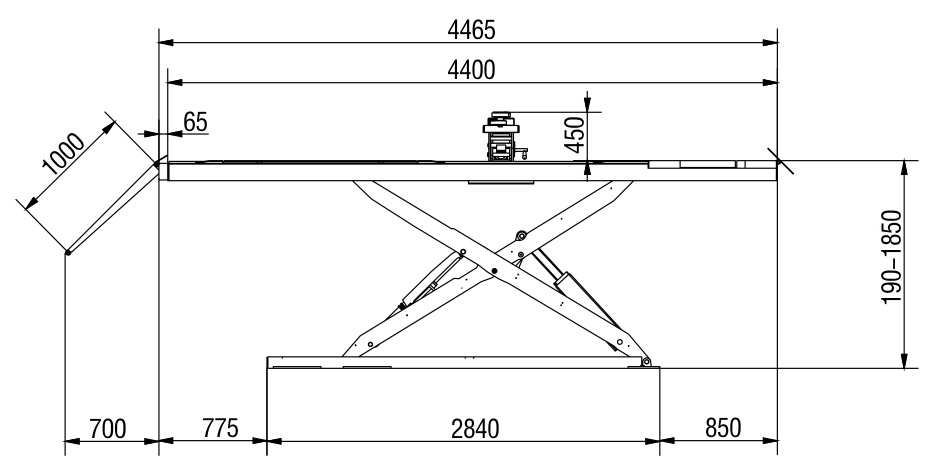

Detailed Drawing

YC-JSZM-A-8140  (1)
YC-JSZM-A-8140  (2)
