YC-JSXB-A-3530 Ultra-thin hydraulic scissor lift

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1.Ultrathin structure, surface mount, the initial landing height is 105mm, occupied small space.
2.The Italy original imported hydraulic pump valve and electrical components.
3.Double cylinder drive, safe and stable synchronization.
4.Meet the needs of different vehicles repair and detection.
5.One button to adjust balance and upper return oil, prevent oil cylinder rust.
13. CE Certificated

Technical Specification

Lifting Capacity 3500kg
Lifting Height 1850mm
Min. Height 105mm
Lifting Time 70s-90s
Length Of The Platform 1450mm
Platform Width 635mm
Motor Power 3.0kw-380v or 3.0kW-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 850kg
Packaging 1600*660*350mm
Total 2 packaging

products list

We also have :
In-Ground Scissor lift 3000kg / 4000kg
Portable Mid rise scissor lift 3500kgs
Portable Scissor Lift 2800KGS
Ultra-thin Scissor Lift


The auto repair scissor lift is an essential tool for any auto repair workshop or garage. It is a versatile piece of equipment that is specifically designed to make car repair easier and more efficient. This lift allows mechanics to access the underside of a vehicle, which cannot be done easily without a lift.

There are many benefits of using the auto repair scissor lift. Firstly, it is designed to provide stability and safety during the repair process. It can handle the weight of cars, small trucks and SUVs, making it compatible with all types of vehicles. Secondly, it makes it easier to fix parts that are located underneath the car, making it possible to carry out tasks such as oil changes, tire rotations, brake replacements, and suspension repairs. Furthermore, it also saves time and effort, reducing the risk of injury to the mechanics and making the work faster and more efficient.

the auto repair scissor lift is an essential tool for any auto repair business or workshop. Its benefits range from increased efficiency to safety and ease of use. With adjustable height, durability, and user-friendly controls, it is the perfect tool to make car repair work easier and more efficient. It is a worthy investment for anyone who wants to provide top-notch service to their customers and increase their bottom line.

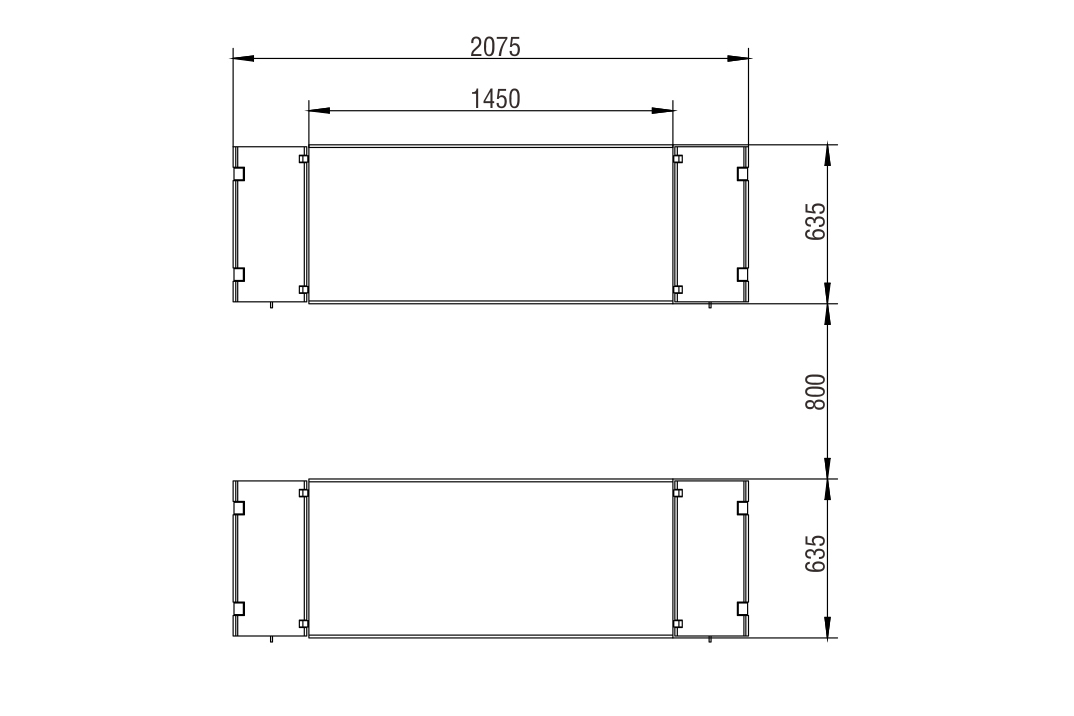

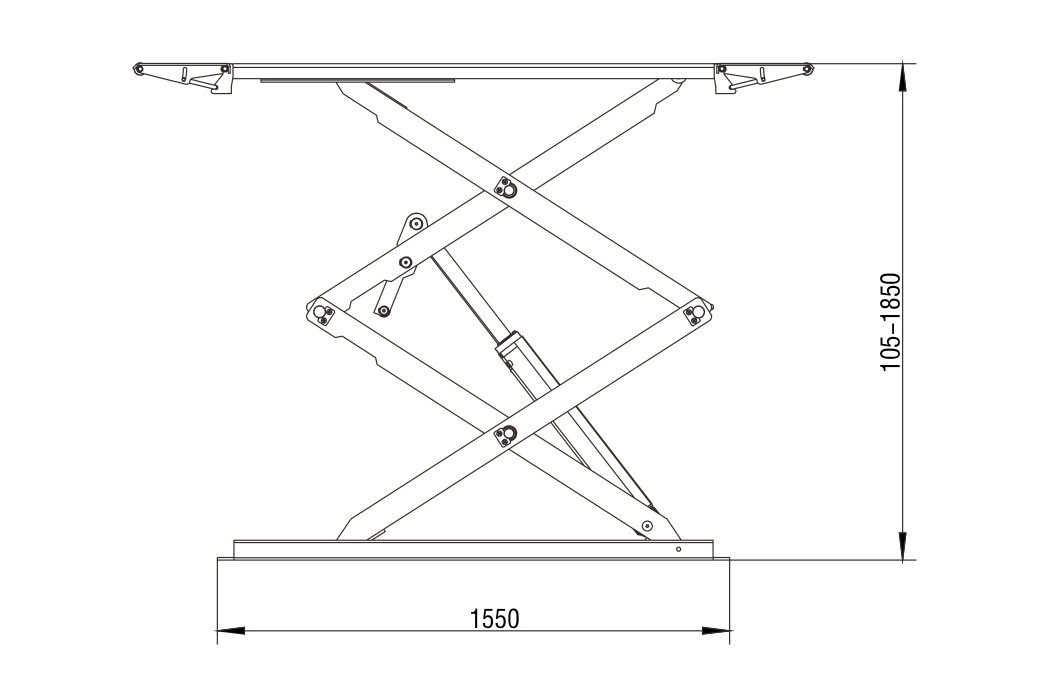

Detailed Drawing

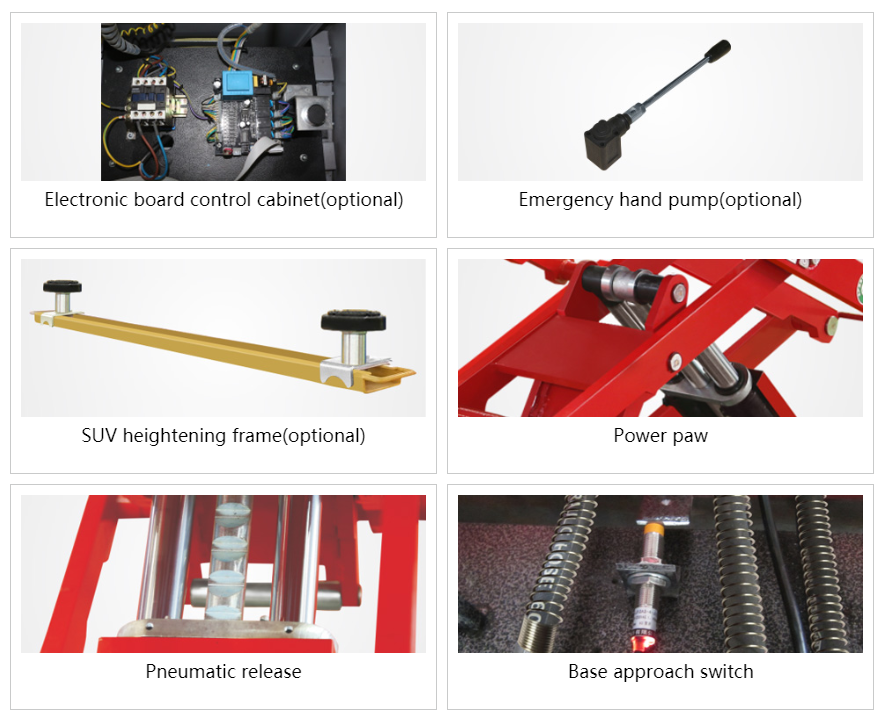

Ultra-thin hydraulic scissor lift (2)
YC-JSXB-A-3530 (1)
YC-JSXB-A-3530 (2)
