YC-JSMT-A-3007 Motocycle scissor lift 500kg 700kg 800 Kg

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift


Product Detail

Product Tags

Characteristics

1.The machine well-designed reasonable structure, safety and reliable , suitable for all kinds of motorcycle.
2.The hydraulic drive, working platform connection extension, lifting stable.
3.Rise and fall with a safety alarm device.
4.Safety unlocking device have manual release and pneumatic release, convenient and reliable.

Technical Specification

Lifting Capacity

70kg

Lifting Height

12000mm

Min. Height

200mm

Lifting Time

30s-50s

Length Of The Platform

2480mm

Platform Width

720mm

Motor Power

1.1kW-220v

Oil Pressure Rating

20MPa

Air Pressure

0.6-0.8MPa

Weight

375kg

Packaging

2520*1000*330mm

350*370*360mm

total 2 packaging

Advantages

The motorcycle scissor lift is crafted from high-quality materials, making it incredibly sturdy and built to last. The lift is easy to set up and features a simple, user-friendly design, allowing even novice riders to use it with ease. Its compact size makes it easy to store when not in use, yet when fully extended, it can lift motorcycles weighing up to 1,000 pounds.

The lift’s scissor design ensures a secure and stable platform for your motorcycle. Simply position the lift beneath your bike and use the hydraulic foot pedal to raise it to the desired height. The lift can be easily adjusted to accommodate different types of motorcycles, including cruisers, sport bikes, and dirt bikes.

This lift is an essential tool for any motorcycle owner, as it provides a safe and efficient way to perform routine maintenance and repair work. By elevating the motorcycle to a comfortable height, you can work on the bike without straining your back and neck. It also allows for easy access to the underside of the bike, for changing tires, cleaning the chain, and performing repairs on the engine.

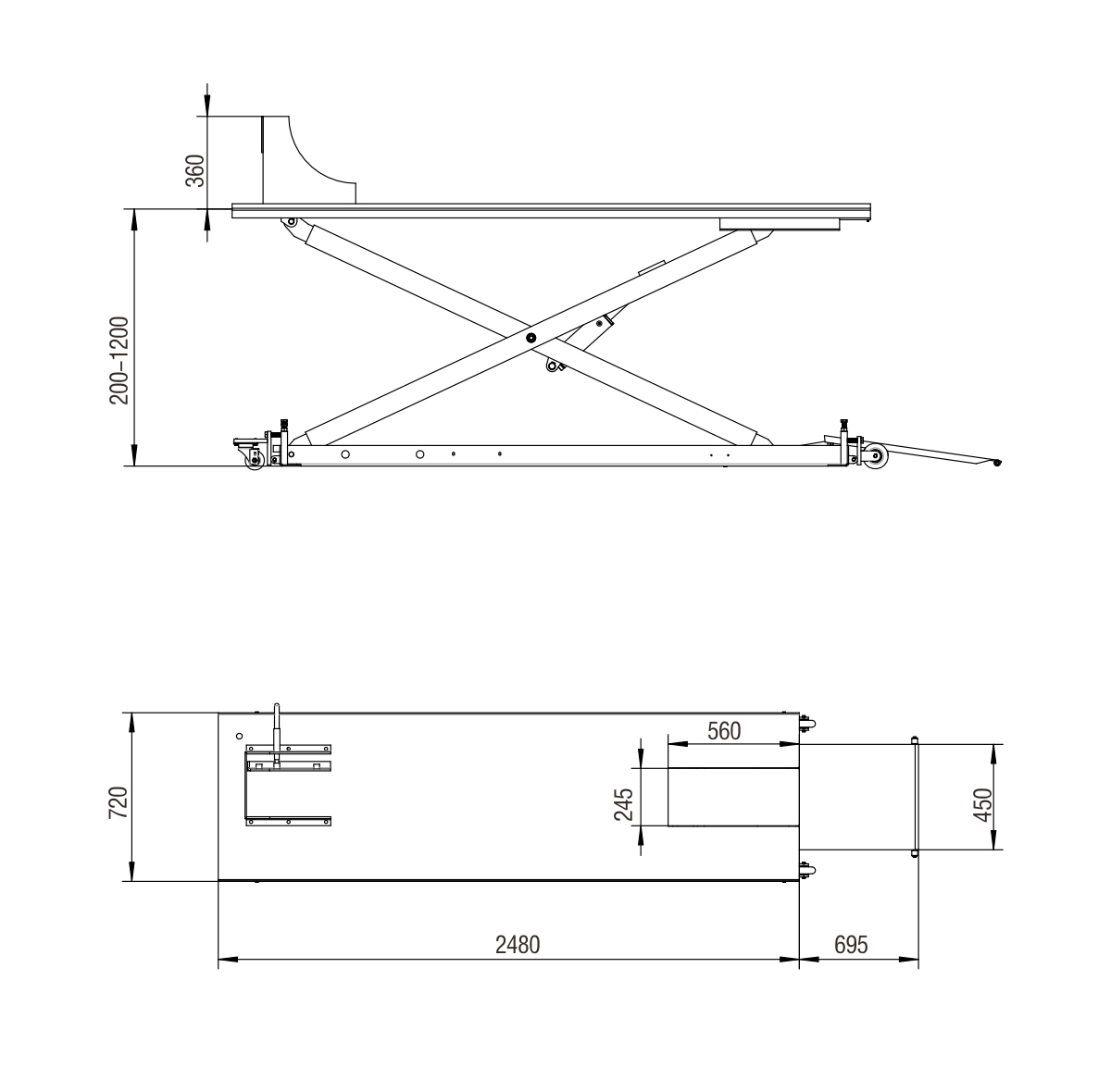

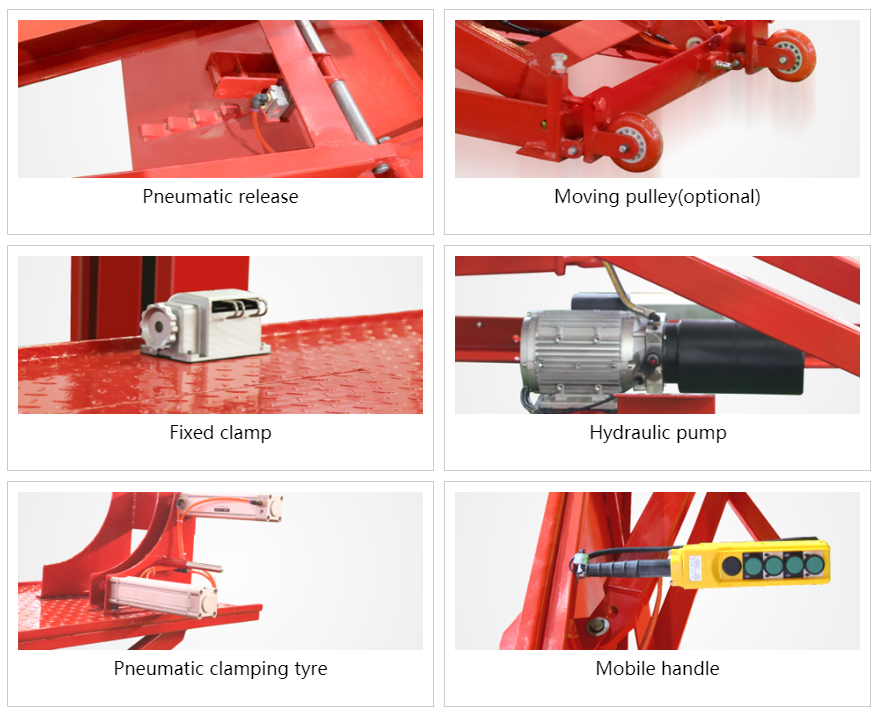

Detailed Drawing

motor lift  (2)
motor lift  (1)
