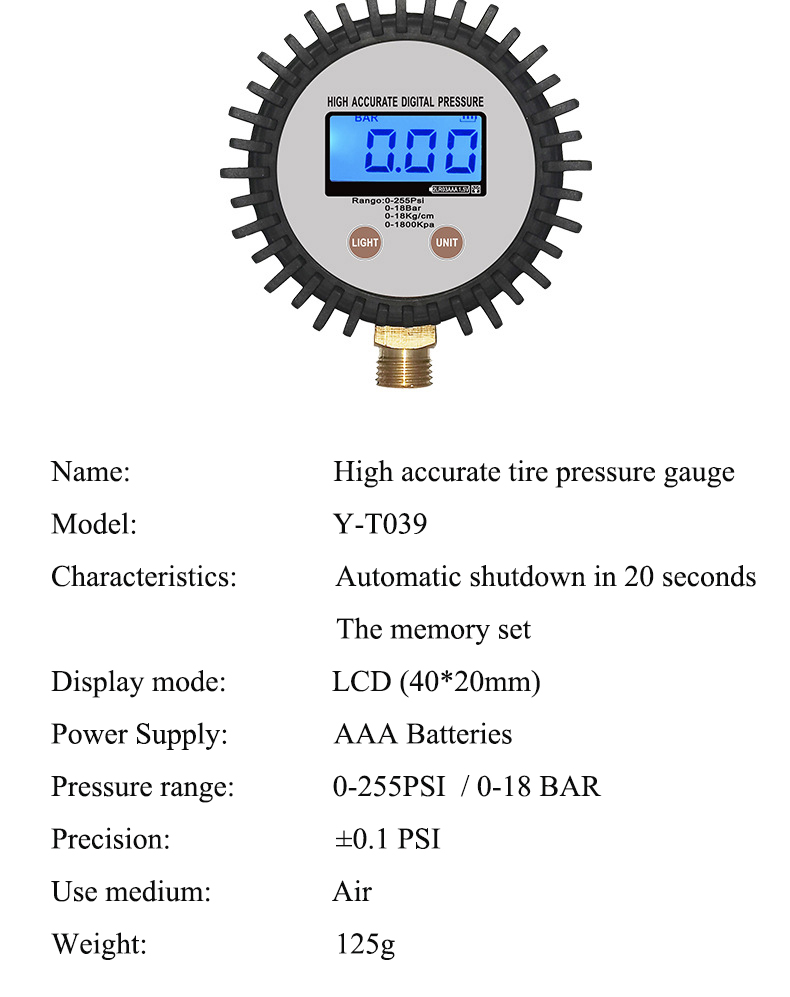

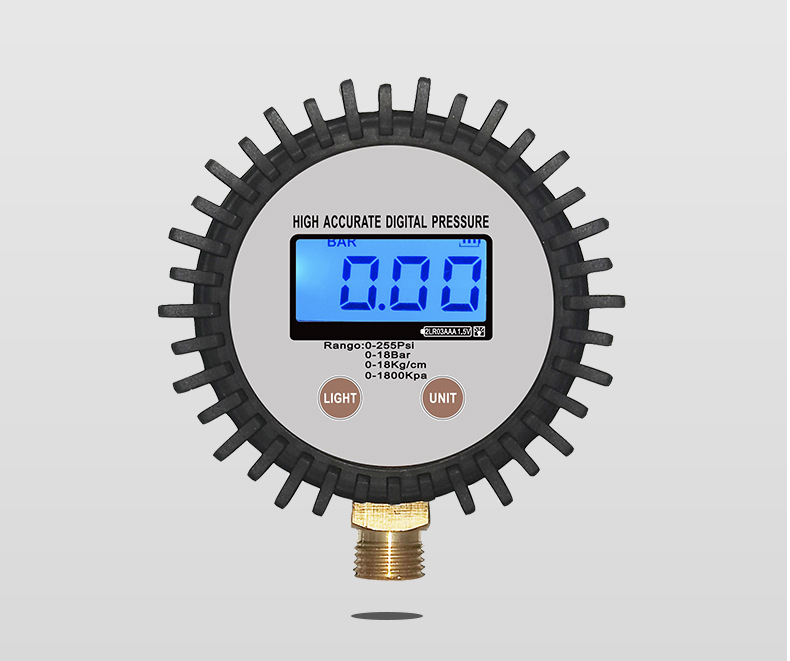

Y-T039 Digital Tire Pressure Gauge with 1/4” NPT Bottom Connector Digital LCD Display
CHARACTERISTICS
- *LCD backlight display
*Four pressure units switching
*15s auto stop
*pressure unit reminder function
TECHNICAL SPECIFICATIONS
| Model | Y-T039 | |
| Applicable | tire gauge / air / Pneumatic | |
| Display mode | digital LCD | |
| Powerstyle | DC 3V-2 pces AAA batteries | |
| Workingtemperature | -10~+60℃ | |
| Storagetemperature | -30~+80℃ | |
| Using | Air / Pneumatic /tire gauge | |
| Function | Pressure gauge | |
| 4 pressure unit choose ,Psi Bar, kg/cm²,Kpa | ||
| background light | ||
| Max inlet pressure | Kg/cm² | 18 kg/cm² |
| Bar | 18 Bar | |
| Psi | 260 Psi | |
| Kpa | 1800Kpa | |
| Gauage Measuring range | Kg/cm² | 0 Kg/cm² ~ 7 kg/cm² |
| Bar | 0.0~7 Bar | |
| Psi | 0.3~100Psi | |
| kpa | 20~1000kpa | |
| Accuracy | Kg/cm² | ±0.1 Kg/cm² |
| Bar | ±0.1bar | |
| Psi | ±0.1Psi | |
| kpa | ±1kpa | |
| Differentiation | 0.1Psi/0.01Bar/0.01Kg/cm/1KPA | |
| Connect | RC1/4,G1/4,1/4NPT | |
| Standard fittings: | High Precision Tire/air/Pneumatic pressure Gauge | |
| Packe size | 84*84*35mm | |
| Net weight | 110.5g | |

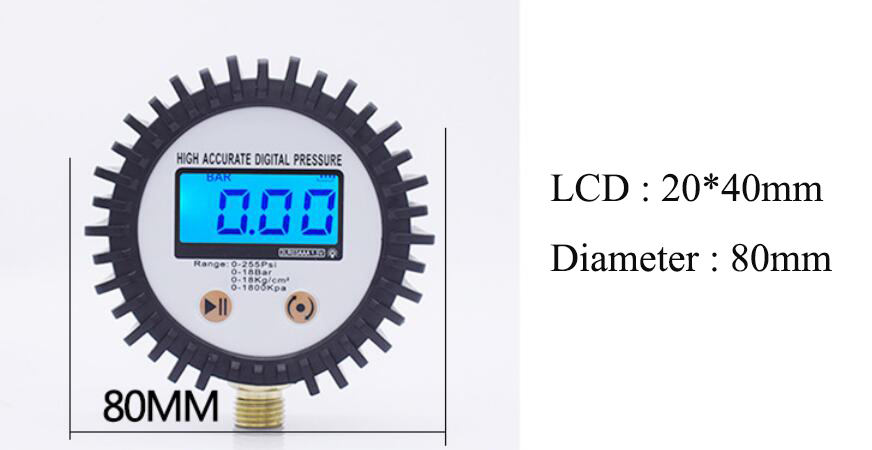

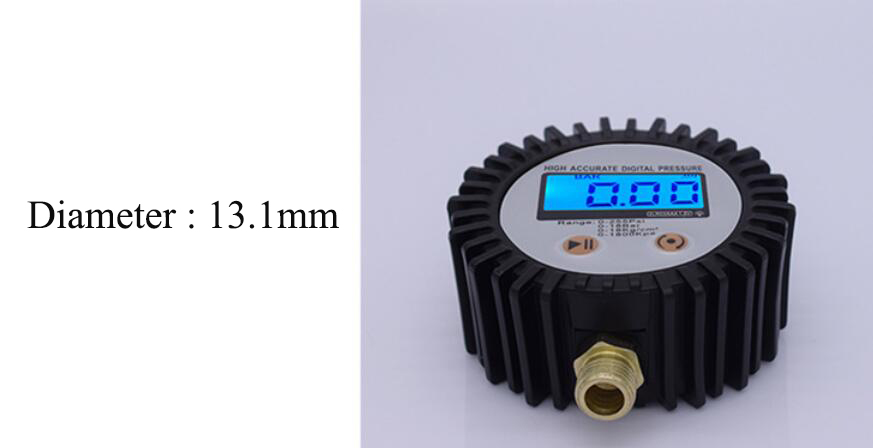

Detailed Drawing
