Y-T035 pressure gauges price automatic tyre neumaticos de autos

Short Description:

Product Detail

Product Tags


*LCD backlight display

  • *Four pressure units switching

  • *15s auto stop

  • *Pressure unit Memory function

  • *Night light

  • *Universal joint

  • *Comfortable anti-slip handle

  • *Accuracy ±0.2Psi
  • * Memory function
  • * Charing, testing and discharging
  • * intergrated design
  • * OEM service is welcome

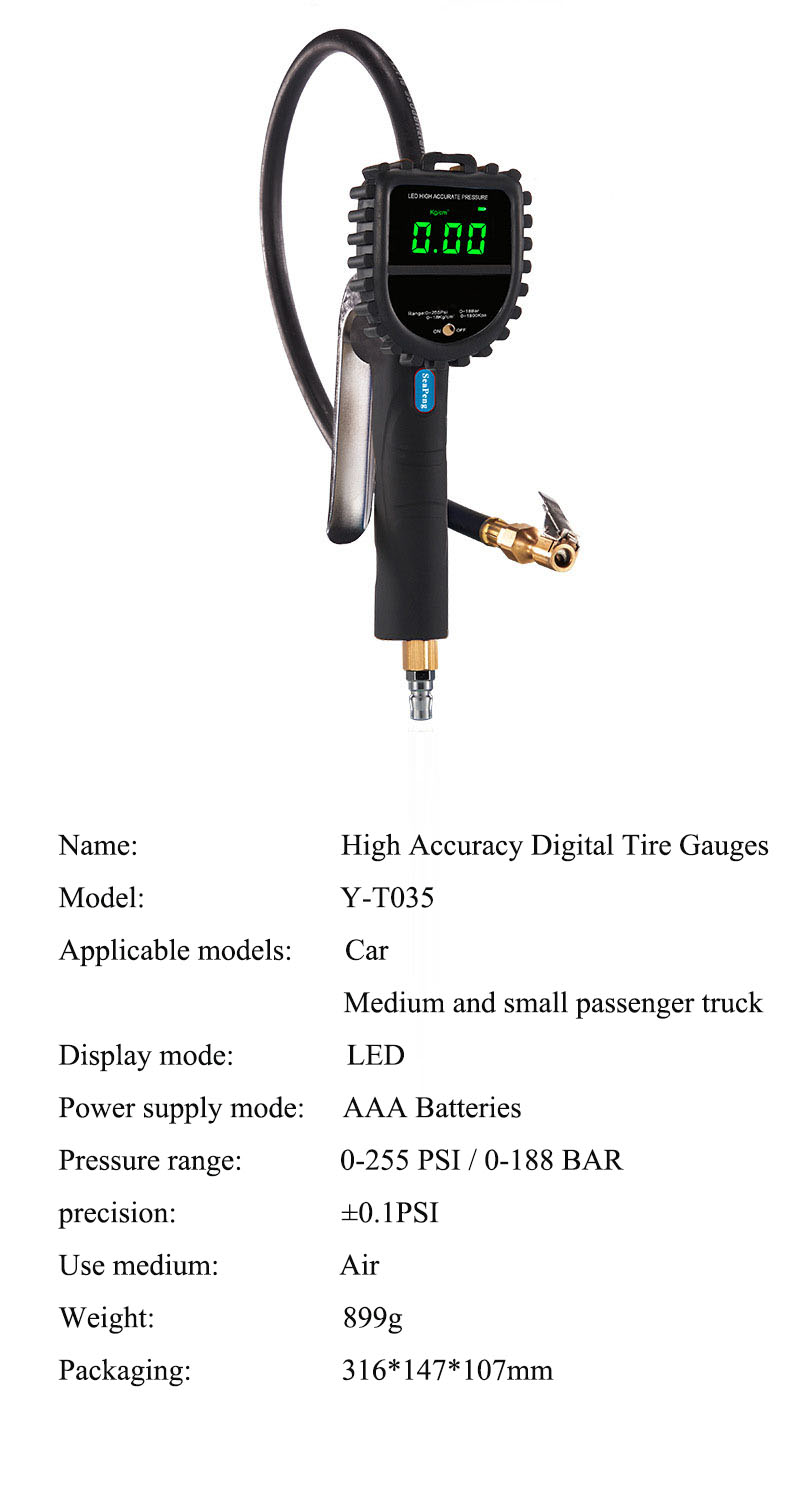

Model  Y-T035
Applicable vehicle Motorcycles, cars, minibuses, small and medium-sized vans
Display mode  LCD digital display (40x20mm,backlight display)
Power style  DC 3V
Working temperature   -20~+70
Storage temperature  -30~+80
Using medium  Non-corrosive, non-flammable compressed air input
Function  Inflate
 Pressure gauge
 4 pressure unit choose ,Psi Bar Kg/cm2 Kpa,
 15 second auto shutdown, reminder and memory function
Max inlet pressure Kg/cm²     18 kg/cm²
Bar     18 Bar
Psi     260 Psi
Kpa     1800Kpa
Gauage Measuring range Kg/cm²     0 Kg/cm² ~ 18 kg/cm²
Bar     0.0~18 Bar
Psi     0.3~255Psi
Kpa     20~1800Kpa
Accuracy Kg/cm²     ±0.01 Kg/cm²
Bar     ±0.01bar
Psi     ±0.2Psi
Kpa     ±1Kpa
Differentiation  0.1Psi/0.01Bar/0.01Kg/cm²/1Kpa
Connect  G1/4"
Standard fittings: 600mm 360°rotary joint inflation tube
Hoist head nozzle
two pcs 1.5V AAA alkaline batteries
 Japanese air inlet connector
Dimensions 255*75*100mm
Packe size  310*143*82mm
Packaging QTY 18 pcs
Net weight 570g
Gross weight 750g
Brand Win Glitter


Why need it?

The dangers of abnormal tyres

Low tire
Increased tire wear, easy to produce a flat tire, car fuel consumption increased
High Tire
The tire grip is lowered and worn quickly and the brake performance is reduced
Flat Tire
Continued driving will cause severe damage to the tire and wheel hub and may cause serious traffic accidents
Air imbalance
Driving and braking are prone to deviation and driving continues to cause traffic accidents

How to use it ?

  1. Connect the trachea and tighten
  2. Connect the air inlet to the air source
  3. Connect to tire to avoid air leaks
  4. Automatically turn on, charge and discharge according to demand

Our Service

1. OEM Manufacturing welcome: Product, Package, pressure gauge invention...
2. free Sample.

3.1 year guarantee.
4. We will reply you for your inquiry in 24hours.working day:7*24.
5. after delivery, we will track the products for you once every two days, until you get the products.

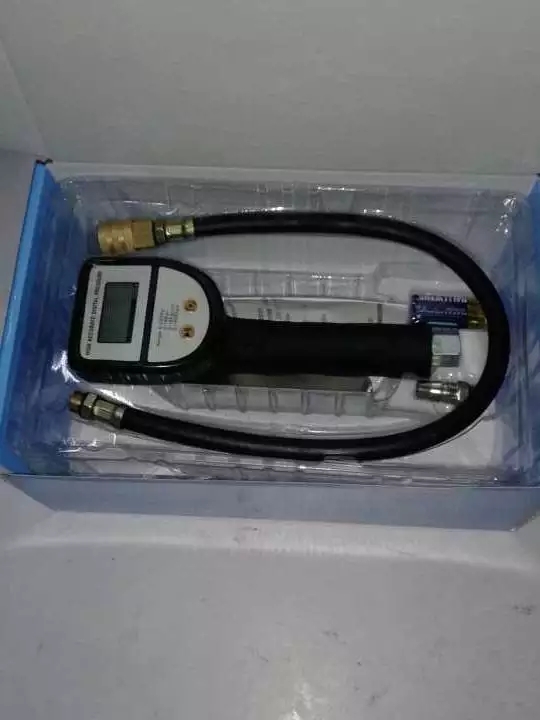

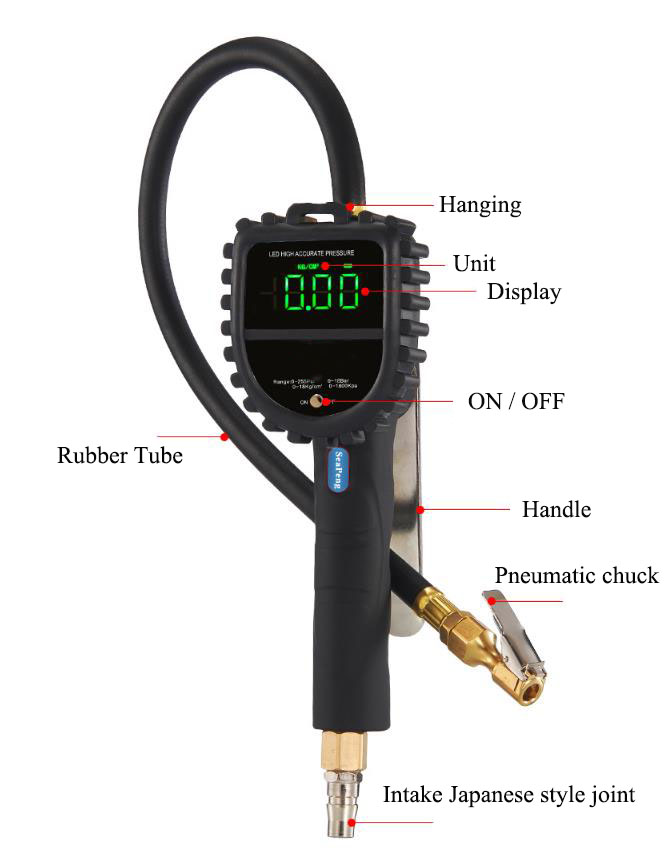

Detailed Drawing

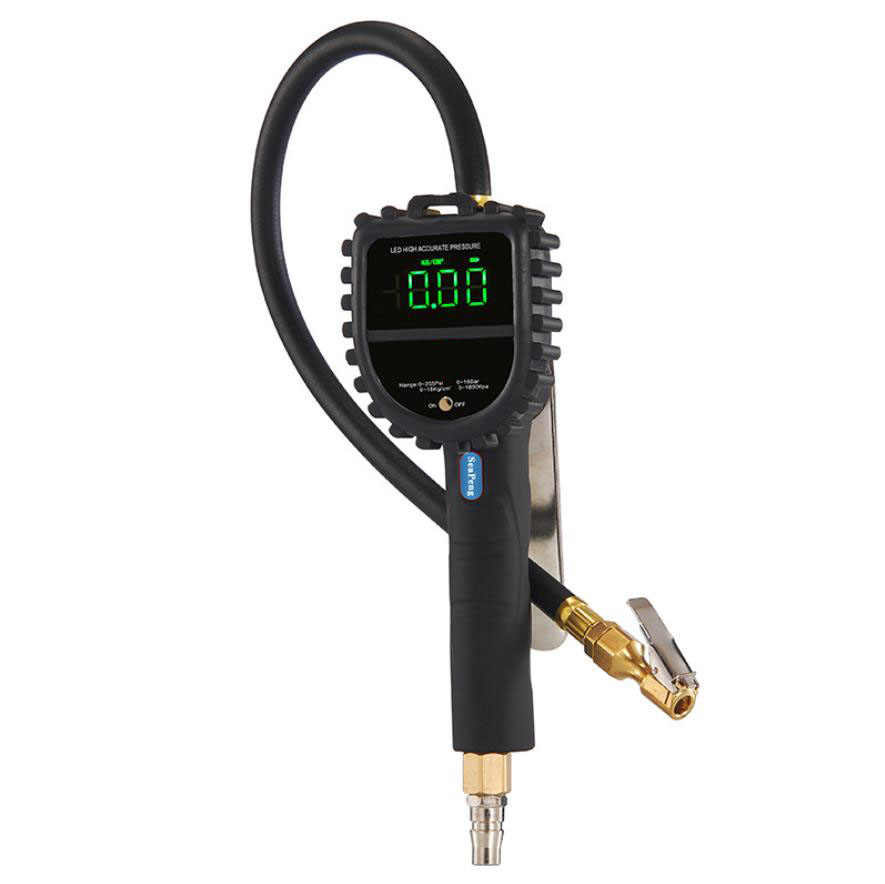

digital gauge (4) digital gauge (6) digital gauge (8) digital gauge (9) digital hydraulic pressure gauge (17)
